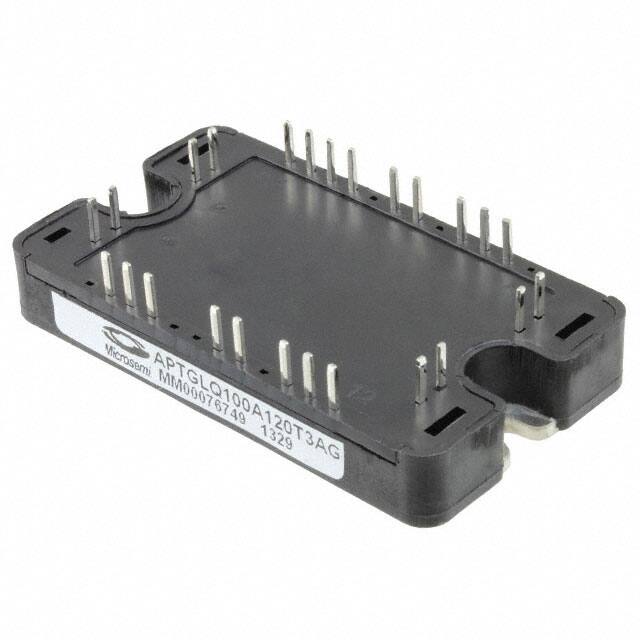

APTGLQ100A120T3AG

Specifications

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

2.4V

Number Of Elements

2

Montaj Stili

Chassis Mount

Montaj

Through Hole

Vceon Max Vge Ic

2.4V @ 15V, 100A

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Collectoremitter Saturation Voltage

2.05 V

Parça Durumu

Active

Paket

Bulk

Yayın Yılı

2012

RoHS Durumu

RoHS Compliant

Maximum Gate Emitter Voltage

20 V

Montaj Tipi

Through Hole

Max Power Dissipation

650W

Tedarikçi Cihaz Paketi

SP3

Maks. Çalışma Sıcaklığı

+ 100 C

Turn On Delay Time

30 ns

Current Collector Cutoff Max

50μA

Collectoremitter Breakdown Voltage

1.2kV

Igbt Type

Trench Field Stop

RoHS

Details

Pin Sayısı

3

Voltage Collector Emitter Breakdown Max

1200V

Input Capacitance

6.15nF

Fabrika Paket Adedi

1

Continuous Collector Current At25 C

185 A

Minimum Operating Temperature

- 40 C

Configuration

Half Bridge

Power Max

650W

Gateemitter Voltagemax

20V

Çalışma Sıcaklığı

-40°C~175°C TJ

Fabrika Tedarik Süresi

36 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Pd Power Dissipation

650 W

Temel Ürün No

APTGLQ100

Collector Emitter Voltage Vceo Max

1.2 kV

Input Capacitance Cies Vce

6.15nF @ 25V
