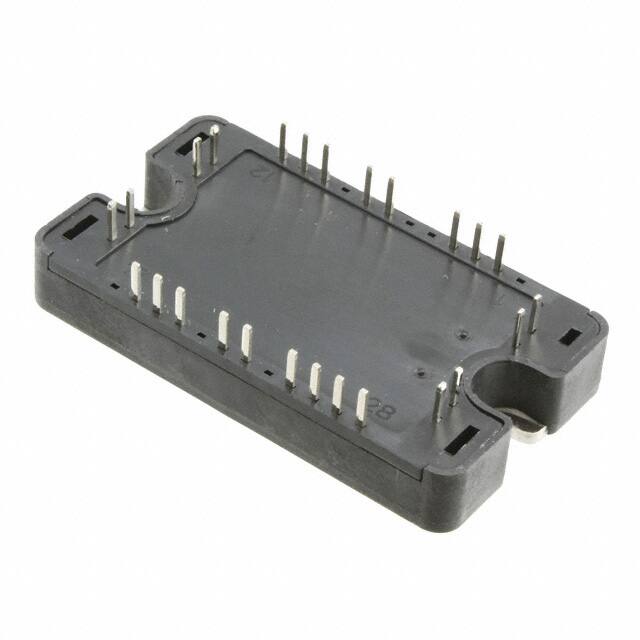

APTGF150A120T3WG

Specifications

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Collector Currentmax Ic

210 A

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

3.7V @ 15V, 150A

Terminal Formu

UNSPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Usage Level

Industrial grade

Parça Durumu

Obsolete

Qualification Status

Not Qualified

Collector Emitter Voltage Vceo

1.2kV

Ntc Thermistor

Yes

Power Dissipationmax Abs

961 W

Transistor Application

POWER CONTROL

Number Of Elements

2

Risk Rank

5.73

Package Shape

RECTANGULAR

Üretici Parça No

APTGF150A120T3WG

Product Depth Mm

2.5(mm)

Collectoremitter Breakdown Voltage

1.2kV

Igbt Type

NPT

Product Length Mm

3.2(mm)

Collectoremitter Voltagemax

1200 V

Element Configuration

Dual

Turnon Timenom Ton

190 ns

Turn On Time

190 ns

Pin Sayısı

18

Number Of Terminals

9

Maks. Çalışma Sıcaklığı

150°C

RoHS Durumu

RoHS Compliant

Pin Sayısı

25

Screening Level

Industrial

Yayın Yılı

2009

Montaj Tipi

Chassis Mount

Polaritychannel Type

N-CHANNEL

Package Description

FLANGE MOUNT, R-XUFM-X9

Max Power Dissipation

961W

Turnoff Timenom Toff

390 ns

Current Collector Cutoff Max

250μA

Case Connection

ISOLATED

Product Height Mm

1.05(mm)
