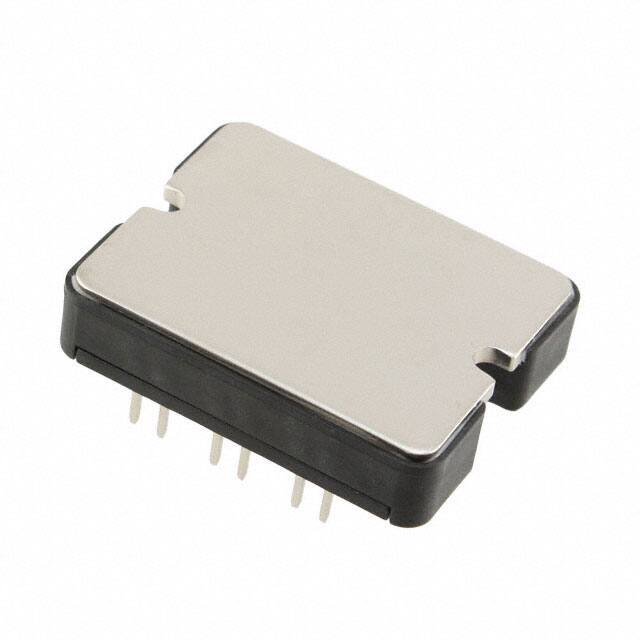

APTGF100DA120T1G

Specifications

Number Of Elements

1

Qualification Status

Not Qualified

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

3.7V

Voltage Collector Emitter Breakdown Max

1200V

Input Capacitance

6.5nF

Terminal Sayısı

12

Transistor Application

MOTOR CONTROL

Turn Off Timenom Toff

390 ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e1

ECCN Kodu

EAR99

Parça Durumu

Obsolete

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Gateemitter Voltagemax

20V

Power Max

735W

Vceon Max Vge Ic

3.7V @ 15V, 100A

Montaj

Chassis Mount, Screw

Configuration

Single

Transistor Element Material

SILICON

Terminal Formu

THROUGH-HOLE

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Pozisyonu

UPPER

Max Power Dissipation

735W

Current Collector Cutoff Max

250μA

Case Connection

ISOLATED

Pin Sayısı

12

RoHS Durumu

RoHS Compliant

Yayın Yılı

2007

Montaj Tipi

Chassis Mount

Polaritychannel Type

N-CHANNEL

Input

Standard

Max Collector Current

130A

Turn On Time

190 ns

Kurşunsuz

Lead Free

Pin Sayısı

1

Kılıf / Paket

SP1

Terminal Kaplaması

TIN SILVER COPPER

Input Capacitance Cies Vce

6.5nF @ 25V

Collectoremitter Breakdown Voltage

1.2kV
