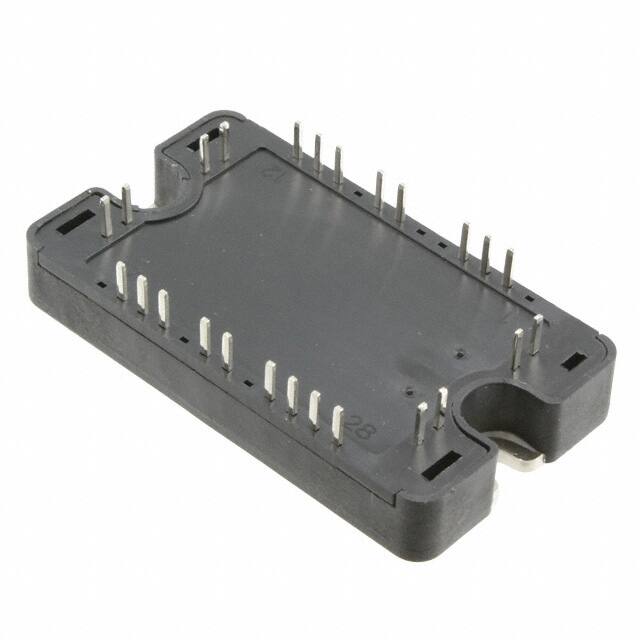

APTGF100A120T3WG

Specifications

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Configuration

Half Bridge

Min. Çalışma Sıcaklığı

-40°C

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

3.7V @ 15V, 100A

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Gateemitter Voltagemax

20V

Parça Durumu

Obsolete

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn Off Timenom Toff

390 ns

Transistor Application

POWER CONTROL

Jesd30 Code

R-XUFM-X9

Terminal Sayısı

9

Input Capacitance

6.5nF

Voltage Collector Emitter Breakdown Max

1200V

Collector Emitter Voltage Vceo

1.2kV

Ntc Thermistor

Yes

Qualification Status

Not Qualified

Number Of Elements

2

Igbt Type

NPT

Collectoremitter Breakdown Voltage

1.2kV

Input Capacitance Cies Vce

6.5nF @ 25V

Maks. Çalışma Sıcaklığı

150°C

Vcesatmax

3.7 V

Kılıf / Paket

SP3

Pin Sayısı

18

Max Collector Current

130A

Turn On Time

190 ns

Element Configuration

Dual

Input

Standard

Polaritychannel Type

N-CHANNEL

Montaj Tipi

Chassis Mount

Yayın Yılı

2009

Pin Sayısı

25

RoHS Durumu

RoHS Compliant

Case Connection

ISOLATED

Current Collector Cutoff Max

250μA

Max Power Dissipation

657W
