Volume pricing
- 1+ pcs$0.19
- 10+ pcs$0.18
- 100+ pcs$0.17
- 500+ pcs$0.16
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Kılıf / Paket

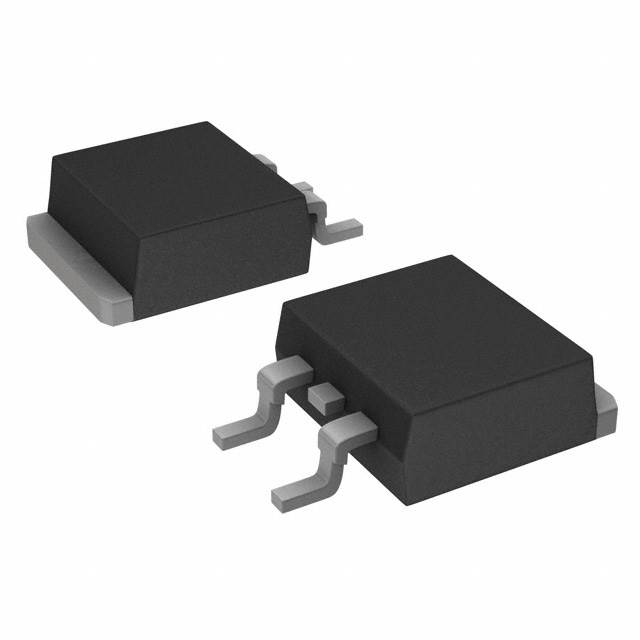

- TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
- Number Of Phases
- 1
- Applications
- HIGH VOLTAGE POWER
- Voltage Dc Reverse Vr Max
- 200V
- Terminal Kaplaması
- Matte Tin (Sn)
- Montaj Tipi
- Surface Mount
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Current Reverse Leakage Vr
- 50μA @ 200V
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Yayın Yılı
- 2005
- Terminal Pozisyonu
- SINGLE
- Number Of Elements
- 2
- Output Currentmax
- 20A
- Current Average Rectified Io
- 20A
- Operating Temperature Junction
- -55°C~150°C
- ECCN Kodu
- EAR99
- Qualification Status
- Not Qualified
- Terminal Formu
- GULL WING
- Voltage Forward Vf Max If
- 950mV @ 10A
- Diode Type
- Schottky
- Tepe Reflow Süresi (maks. sn)
- 10
- RoHS Durumu
- ROHS3 Compliant
- Nonrep Pk Forward Currentmax
- 150A
- JESD-609 Kodu
- e3
- Operating Temperature Max
- 150°C
- Additional Feature
- LOW LEAKAGE CURRENT
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Ambalaj
- Cut Tape (CT)
- Jesd30 Code
- R-PSSO-G2
- Terminal Sayısı
- 2
- Diode Configuration
- 1 Pair Common Cathode
- Tepe Reflow Sıcaklığı (°C)
- 260
- Yüzey Montaj
- YES
- Rep Pk Reverse Voltagemax
- 200V
- Fabrika Tedarik Süresi
- 16 Weeks
- Pin Sayısı
- 3
- Diode Element Material
- SILICON
- HTS Kodu
- 8541.10.00.80
