Specifications

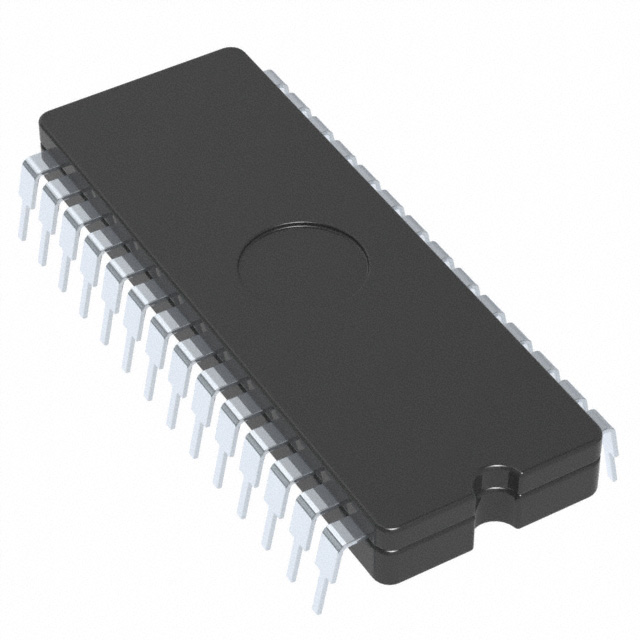

- Temel Parça No
- TC7135
- Terminal Sayısı
- 28
- Yayın Yılı
- 2000
- Operating Supply Current
- 1mA
- Number Of Analog In Channels
- 1
- Output Bit Code
- BINARY CODED DECIMAL
- Fonksiyon Sayısı
- 1
- Genişlik
- 15.24mm
- Besleme Gerilimi
- 5V
- HTS Kodu
- 8542.39.00.01
- Digits Or Characters
- A/D 4.5 Digits
- Converter Type
- ADC, DUAL-SLOPE
- Power Dissipation
- 30mW
- Kılıf / Paket
- 28-DIP (0.600, 15.24mm)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Tepe Reflow Sıcaklığı (°C)
- 260
- ECCN Kodu
- EAR99
- Terminal Kaplaması
- Matte Tin (Sn)
- Montaj
- Through Hole
- RoHS Durumu
- ROHS3 Compliant
- Pin Sayısı
- 28
- Ambalaj
- Tube
- Uzunluk
- 36.32mm
- Pin Sayısı
- 28
- Configuration
- 7 Segment
- Montaj Tipi
- Through Hole
- Negative Supply Voltagenom
- -5V
- Parça Durumu
- Obsolete
- Operating Supply Voltage
- 5V
- Display Type
- LED
- Çalışma Sıcaklığı
- 0°C~70°C
- Qualification Status
- Not Qualified
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Adımı
- 2.54mm
- Maks. Oturma Yüksekliği
- 5.08mm
- JESD-609 Kodu
- e3
- Terminal Pozisyonu
- DUAL
- Besleme Gerilimi
- 4V~6V
- Interface
- BCD
