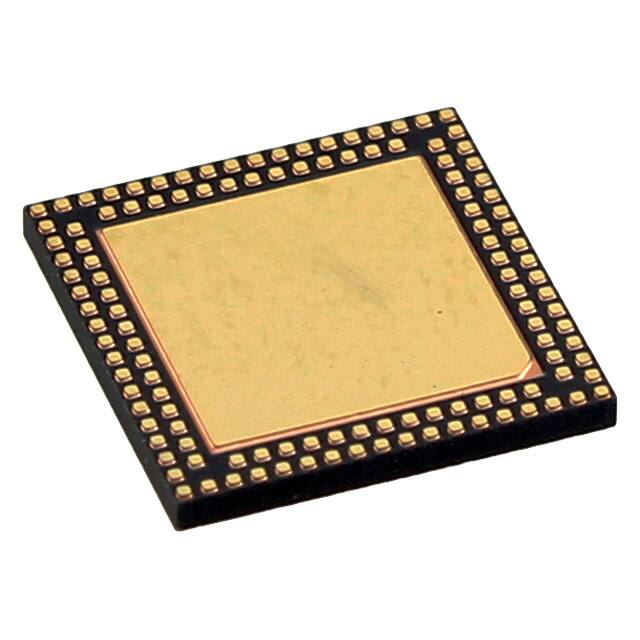

PIC32MX470F512L-I/TL

Specifications

Qualification Status

Not Qualified

Max Frequency

100MHz

Additional Feature

AEC-Q100 REVH (GRADE 2 -40 CEL TO +105 CEL) PLANNED

Connectivity

I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG

Bit Size

32

Core Size

32-Bit

JESD-609 Kodu

e4

Program Memory Type

FLASH

Pwm Channels

YES

Ram Size

128K x 8

Usage Level

Automotive grade

Has Adc

YES

Parça Durumu

Active

Operating Supply Voltage

3.6V

Terminal Formu

BUTT

Data Converters

A/D 28x10b

Data Bus Width

32b

Oscillator Type

Internal

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Seri

PIC® 32MX

Temel Parça No

PIC32MX470F512L

Memory Size

512kB

Voltage Supply Vccvdd

2.3V~3.6V

Terminal Sayısı

124

Supply Currentmax

75mA

Number Of Ios

85

Romword

536576

Power Supplies

2.5/3.3V

Çalışma Sıcaklığı

-40°C~85°C TA

Nem Hassasiyeti (MSL)

3 (168 Hours)

Terminal Adımı

0.5mm

Maks. Oturma Yüksekliği

0.9mm

Terminal Pozisyonu

BOTTOM

On Chip Program Rom Width

8

Interface

I2C, SPI, UART

Cpu Family

PIC

Uzunluk

9mm

Speed

80MHz

Fabrika Tedarik Süresi

7 Weeks

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT
