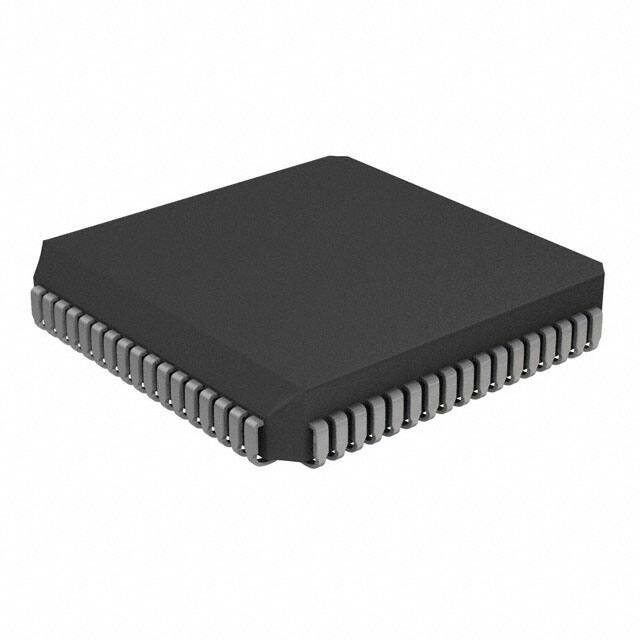

PIC18F6585-I/L

Specifications

Program Memory Size

48KB 24K x 16

Watchdog Timers

Yes

Seri

PIC® 18F

Density

384 kb

Reach Svhc

No SVHC

Core Size

8-Bit

Ambalaj

Tube

Core Processor

PIC

Kılıf / Paket

68-LCC (J-Lead)

Fabrika Tedarik Süresi

9 Weeks

Pin Sayısı

68

Frekans

40MHz

Voltage Supply Vccvdd

4.25V~5.5V

Oscillator Type

External

Pin Sayısı

68

RoHS Durumu

ROHS3 Compliant

Ram Size

3.25K x 8

Montaj

Surface Mount

Number Of Pwm Channels

2

Number Of Adc Channels

12

Peripherals

Brown-out Detect/Reset, LVD, POR, PWM, WDT

Number Of Ios

52

Radyasyon Dayanımı

No

Eeprom Size

1K x 8

Nem Hassasiyeti (MSL)

3 (168 Hours)

Kurşunsuz Kodu

yes

Number Of Timerscounters

5

Terminal

SMD/SMT

Max Power Dissipation

1W

Temel Parça No

PIC18F6585

Yayın Yılı

2004

Connectivity

CANbus, I2C, SPI, UART/USART

Montaj Tipi

Surface Mount

Number Of Programmable Io

53

Memory Size

48kB

Operating Supply Voltage

5V

Parça Durumu

Active

Interface

CAN, I2C, SPI, USART

Data Bus Width

8b

On Chip Program Rom Width

16
