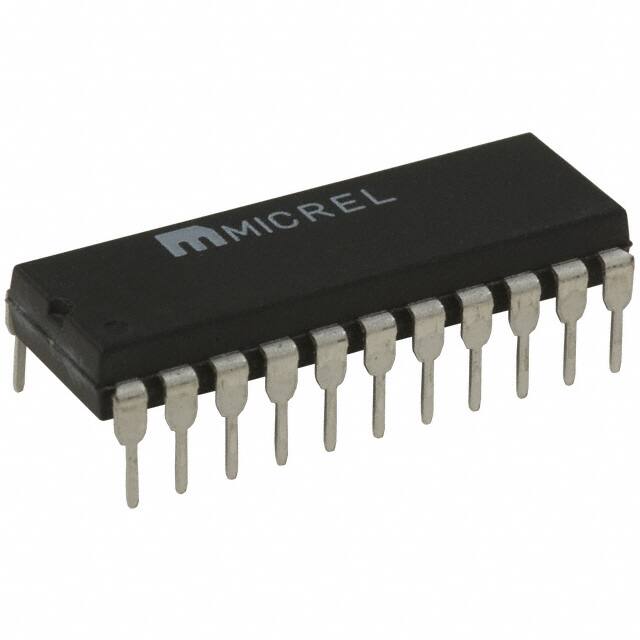

MIC5801BN

Specifications

Current Output Max

500mA

Power Supplies

5/12 V

Fonksiyon Sayısı

8

Yüzey Montaj

NO

Package Body Material

PLASTIC/EPOXY

Output Configuration

Low Side

Package Style

IN-LINE

Output Currentmax

0.35 A

Terminal Formu

THROUGH-HOLE

ECCN Kodu

EAR99

Uzunluk

27.559 mm

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Montaj Tipi

Through Hole

Package Shape

RECTANGULAR

Kılıf / Paket

22-DIP (0.400, 10.16mm)

JESD-609 Kodu

e0

Qualification Status

Not Qualified

Genişlik

10.16 mm

Ambalaj

Tube

Lead Free Status Rohs Status

Contains lead / RoHS non-compliant

Çıkış Tipi

Bipolar

Temperature Grade

INDUSTRIAL

Terminal Adımı

2.54 mm

Risk Rank

5.08

Operating Temperaturemin

-40 °C

RoHS Durumu

Non-RoHS Compliant

Part Life Cycle Code

Obsolete

Input Characteristics

STANDARD

Builtin Protections

TRANSIENT

Çalışma Sıcaklığı

-40°C~85°C TA

Output Current Flow Direction

SINK

Interface Ic Type

LATCH BASED PERIPHERAL DRIVER

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Output Characteristics

OPEN-COLLECTOR

Reflow Temperaturemax S

NOT SPECIFIED

Voltage Load

50V Max

Number Of Outputs

8

Jesd30 Code

R-PDIP-T22

Part Package Code

DIP

Nem Hassasiyeti (MSL)

1 (Unlimited)
