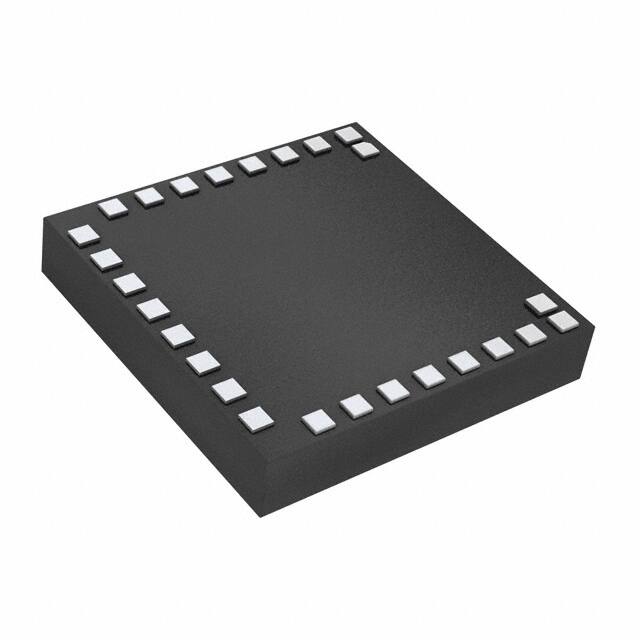

HV230G1-G

Specifications

Onstate Resistance Matchnom

7.6Ohm

Yükseklik

550μm

Qualification Status

Not Qualified

Number Of Channels

8

Terminal Formu

BUTT

Switchon Timemax

5000ns

Operating Supply Voltage

13.2V

Min Dual Supply Voltage

40V

Supply Type

Dual

Kılıf / Paket

26-UFLGA

Switch Circuit

SPST

Max Supply Current

10μA

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

0.65mm

Çalışma Sıcaklığı

0°C~70°C TA

Min Supply Voltage

4.5V

Turn On Delay Time

5 μs

Max Power Dissipation

1W

Terminal Pozisyonu

BOTTOM

Uzunluk

6mm

Output

SEPARATE OUTPUT

Additional Feature

ALSO REQUIRES VPP (40V TO VNN +200V) AND VNN (-40V TO -160V) SUPPLY

Tepe Reflow Sıcaklığı (°C)

260

Tepe Reflow Süresi (maks. sn)

40

Onstate Resistance Max

38Ohm

Fonksiyon Sayısı

8

Voltage Supply Singledual

40V~200V ±40V~160V

Direnç

22Ohm

Turn Off Delay Time

5 μs

Montaj

Surface Mount

Temel Parça No

HV230

Max Supply Voltage

13.2V

Terminal Kaplaması

NICKEL PALLADIUM GOLD

Offstate Isolationnom

58 dB

Besleme Gerilimi

5V

Switchoff Timemax

5000ns

Montaj Tipi

Surface Mount

JESD-609 Kodu

e4

Nem Hassasiyeti (MSL)

3 (168 Hours)

Operating Supply Current

7mA
