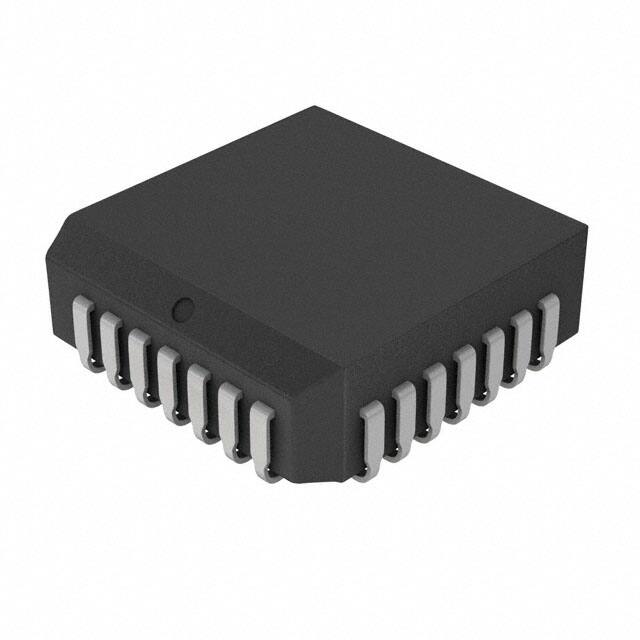

HV20320PJ-G

Specifications

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

1.27mm

Çalışma Sıcaklığı

0°C~70°C TA

Switch Circuit

SPST

Max Supply Current

10μA

Fabrika Tedarik Süresi

14 Weeks

Analog Ic Other Type

SINGLE-ENDED MULTIPLEXER

Onstate Resistance Max

38Ohm

Tepe Reflow Süresi (maks. sn)

40

Tepe Reflow Sıcaklığı (°C)

245

Fonksiyon Sayısı

1

Direnç

38Ohm

Voltage Supply Singledual

40V~200V ±40V~160V

Min Supply Voltage

4.5V

Turn On Delay Time

5 μs

Terminal Pozisyonu

QUAD

Max Power Dissipation

1.2W

Uzunluk

11.51mm

Additional Feature

ALSO REQUIRES VPP (40V TO VNN +200V) AND VNN (-40V TO -160V) SUPPLY

Output

SEPARATE OUTPUT

Onstate Resistance Matchnom

1.35Ohm

Yükseklik

3.68mm

Usage Level

Commercial grade

Operating Supply Voltage

5V

Min Dual Supply Voltage

40V

Supply Type

Dual, Single

Kılıf / Paket

28-LCC (J-Lead)

Qualification Status

Not Qualified

Number Of Channels

8

Terminal Formu

J BEND

Switchon Timemax

5000ns

Applications

Ultrasound

Multiplexerdemultiplexer Circuit

1:1

Operating Supply Current

7mA

Genişlik

11.51mm

Parça Durumu

Active

3db Bandwidth

50MHz

Normal Position

NO

Ambalaj

Tube

Terminal Sayısı

28
