EMC1182-2-AC3-TR

Specifications

Terminal Sayısı

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2016

Resolution

11 b

Temel Parça No

EMC1182

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Çıkış Tipi

SMBus

Montaj Tipi

Surface Mount

Yüzey Montaj

YES

RoHS Durumu

ROHS3 Compliant

Sensing Temperature Remote

-64°C~191°C

Özellikler

One-Shot, Output Switch, Programmable Limit, Shutdown Mode, Standby Mode

Sensing Temperature Local

-40°C~125°C

Accuracy Highest Lowest

±1°C (±2°C)

Body Height

0.75mm

Termination Type

SOLDER

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~125°C

Besleme Gerilimi

3V~3.6V

Test Conditions

-5°C ~ 100°C (-40°C ~ 125°C)

Body Breadth

2 mm

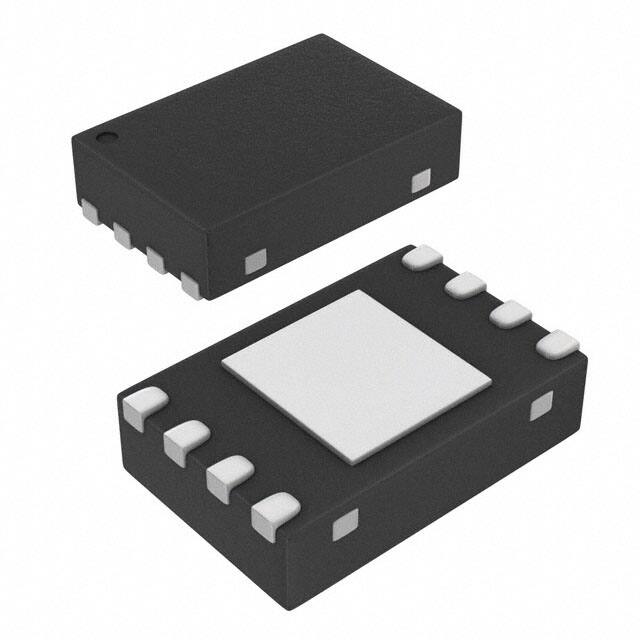

Kılıf / Paket

8-WFDFN Exposed Pad

Fabrika Tedarik Süresi

6 Weeks

Power Supplies

3.3V

Sensorstransducers Type

TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

Accuracymax

2 Cel

Parça Durumu

Last Time Buy

Output Interface Type

2-WIRE INTERFACE

Number Of Bits

11

JESD-609 Kodu

e4

Sensor Type

Digital, Local/Remote

Pin Sayısı

8

Body Length Or Diameter

3mm

Nominal Supply Current

200μA
