DSPIC30F1010-20E/MM

Specifications

Program Memory Size

6KB 2K x 24

Data Bus Width

16b

Tepe Reflow Süresi (maks. sn)

40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

13 Weeks

Uzunluk

6mm

Number Of Timerscounters

2

Maks. Oturma Yüksekliği

1mm

Besleme Gerilimi

5V

Frekans

20MHz

Connectivity

I2C, IrDA, LINbus, SPI, UART/USART

Power Supplies

3.3/5V

Montaj

Surface Mount

Temel Parça No

DSPIC30F1010

Interface

I2C, IrDA, LIN, SPI, UART, USART

Pin Sayısı

28

Oscillator Type

Internal

Tepe Reflow Sıcaklığı (°C)

260

Çalışma Sıcaklığı

-40°C~125°C TA

Dma Channels

NO

Terminal Sayısı

28

Ram Words

128

Pwm Channels

YES

Ambalaj

Tube

Additional Feature

IT ALSO OPERATES IN 15 MIPS AT 3V MINIMUM

Supply Voltagemin Vsup

4.5V

Voltage Supply Vccvdd

3V~5.5V

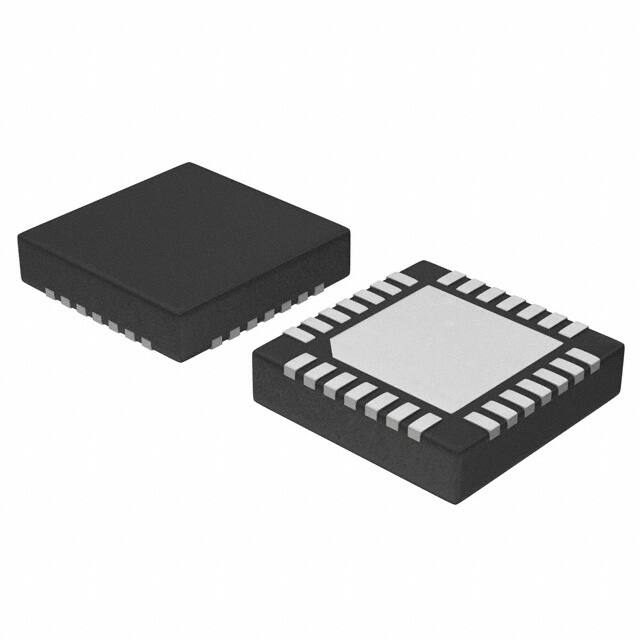

Kılıf / Paket

28-VQFN Exposed Pad

Format

FIXED-POINT

RoHS Durumu

ROHS3 Compliant

Has Adc

YES

Supply Voltagemax Vsup

5.5V

Number Of Ios

21

Memory Size

6kB

Yayın Yılı

2006

Seri

dsPIC™ 30F

Peripherals

Brown-out Detect/Reset, POR, PWM, WDT

Core Size

16-Bit

Data Converters

A/D 6x10b
