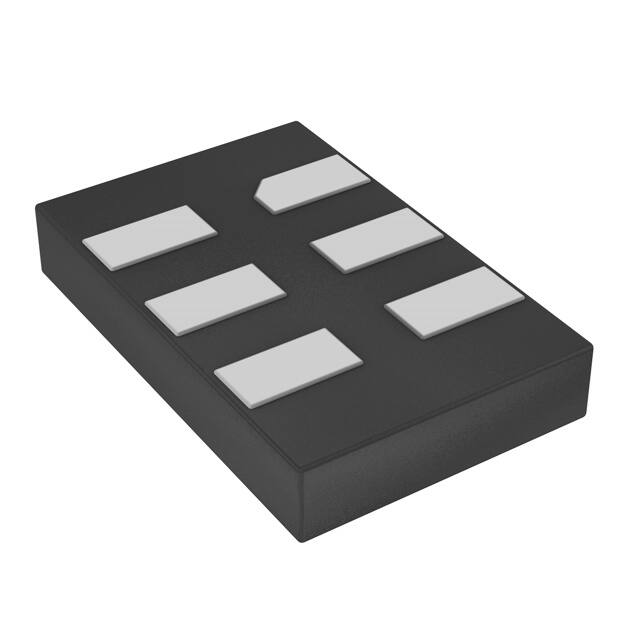

DSC1101BE1-012.0000T

Specifications

RoHS Durumu

ROHS3 Compliant

Physical Dimension

5.0mm x 3.2mm x 0.85mm

Ambalaj

Tape & Reel (TR)

Additional Feature

STANDBY; ENABLE/DISABLE FUNCTION; TR

Frekans

12MHz

Symmetrymax

55/45%

Terminal Kaplaması

Matte Tin (Sn)

Max Duty Cycle

55 %

Montaj

Surface Mount

Function

Standby (Power Down)

Terminal

SMD/SMT

Operating Frequency

12MHz

Besleme Gerilimi

2.25V~3.6V

Frequency Stability

±50ppm

Fall Timemax

2ns

Montaj Tipi

Surface Mount

Parça Durumu

Active

Load Capacitance

15pF

Yükseklik

889μm

Rise Timemax

2ns

Base Resonator

MEMS

Seri

DSC1101

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-20°C~70°C

Nem Hassasiyeti (MSL)

3 (168 Hours)

Current Supply Disable Max

95μA

Kılıf / Paket

6-SMD, No Lead

Tip

XO (Standard)

Max Supply Current

35mA

JESD-609 Kodu

e3

Boyut / Ölçü

0.197Lx0.126W 5.00mmx3.20mm

Output

CMOS

Maks. Oturma Yüksekliği

0.035 0.90mm
