Specifications
- Ambalaj
- Tape & Reel (TR)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çıkış Akımı
- 1.5A
- Besleme Gerilimi
- 5V
- Terminal Formu
- GULL WING
- Driver Number Of Bits
- 6
- Builtin Protections
- OVER CURRENT; THERMAL; UNDER VOLTAGE

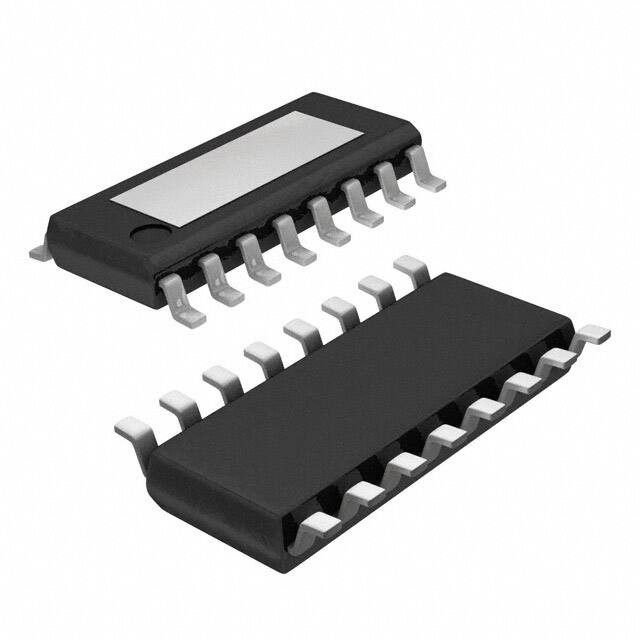

- Kılıf / Paket
- 16-SOIC (0.154, 3.90mm Width) Exposed Pad
- Output Current Flow Direction
- SOURCE SINK
- Yüzey Montaj
- YES
- Turn Off Time
- 20 µs
- Voltage Load
- 5.6V~40V
- Terminal Adımı
- 1.27mm
- Turn On Time
- 20 µs
- Yayın Yılı
- 2011
- Besleme Gerilimi
- 4.75V~5.25V
- Output Configuration
- Half Bridge (3)
- Maks. Oturma Yüksekliği
- 1.68mm
- Input Characteristics
- STANDARD
- Terminal Sayısı
- 16
- Motor Type Ac Dc
- Brushed DC
- Terminal Pozisyonu
- DUAL
- Genişlik
- 3.9mm
- Temel Parça No
- ATA6829
- Uzunluk
- 9.9mm
- Montaj Tipi
- Surface Mount
- Parça Durumu
- Obsolete
- RoHS Durumu
- ROHS3 Compliant
- Jesd30 Code
- R-PDSO-G16
- Supply Voltage1nom
- 13V
- Applications
- General Purpose
- Interface
- SPI
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Function
- Driver - Fully Integrated, Control and Power Stage
