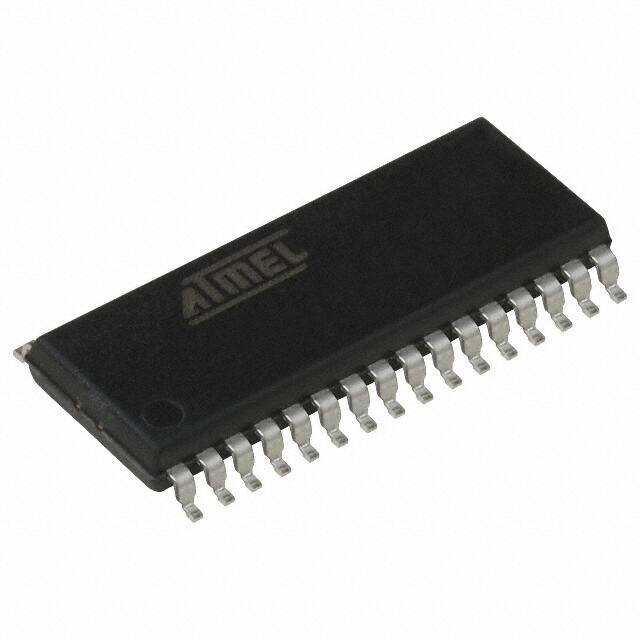

AT90PWM3B-16SU

Specifications

Nem Hassasiyeti (MSL)

3 (168 Hours)

Radyasyon Dayanımı

No

Uzunluk

20.88mm

Core Size

8-Bit

Pin Sayısı

32

Number Of Programmable Io

27

Access Time

16 μs

Min. Çalışma Sıcaklığı

-40°C

Speed

16MHz

Connectivity

SPI, UART/USART

Core Architecture

AVR

Eeprom Size

512 x 8

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-40°C~105°C TA

Montaj

Surface Mount

Tedarikçi Cihaz Paketi

32-SOIC

Frekans

16MHz

Genişlik

7.6mm

RoHS Durumu

ROHS3 Compliant

Memory Size

8kB

Interface

SPI, UART, USART

Parça Durumu

Obsolete

Memory Types

FLASH

Contact Plating

Tin

Core Processor

AVR

Min Supply Voltage

2.7V

Seri

AVR® 90PWM Lighting

Max Frequency

16MHz

Number Of Spi Channels

1

Number Of Adc Channels

11

Watchdog Timers

Yes

Program Memory Size

8KB 8K x 8

Number Of Ios

27

Peripherals

Brown-out Detect/Reset, POR, PWM, WDT

Kılıf / Paket

32-SOIC (0.295, 7.50mm Width)

Oscillator Type

Internal

Temel Parça No

AT90PWM3B

Voltage Supply Vccvdd

2.7V~5.5V

Data Converters

A/D 11x10b; D/A 1x10b

Max Supply Voltage

5.5V
