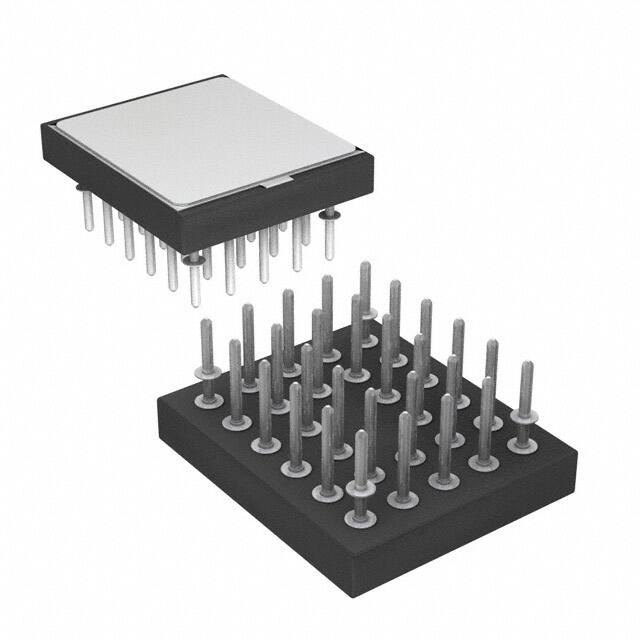

AT28C256-20UM/883

Specifications

Maks. Oturma Yüksekliği

4.4mm

Page Size

64words

Memory Interface

Parallel

Parça Durumu

Active

Contact Plating

Lead, Tin

Density

256 kb

Data Polling

YES

Memory Format

EEPROM

Tepe Reflow Sıcaklığı (°C)

225

Terminal Sayısı

28

Screening Level

MIL-STD-883 Class C

Operating Mode

ASYNCHRONOUS

Access Time

200ns

Memory Types

Non-Volatile

RoHS Durumu

Non-RoHS Compliant

Kılıf / Paket

28-BCPGA

Additional Feature

AUTOMATIC WRITE

Power Supplies

5V

Montaj Tipi

Through Hole

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Fonksiyon Sayısı

1

Endurance

10000 Write/Erase Cycles

Ambalaj

Tray

Montaj

Through Hole

Memory Size

256Kb 32K x 8

Operating Supply Voltage

5V

Kurşunsuz

Contains Lead

Tepe Reflow Süresi (maks. sn)

30

Pin Sayısı

28

Programming Voltage

5V

Nominal Supply Current

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Besleme Gerilimi

5V

Frekans

200GHz

Kurşunsuz Kodu

no

Toggle Bit

YES

Usage Level

Military grade

Memory Width

8

Uzunluk

16.51mm

Qualification Status

Not Qualified
