Volume pricing
- 1+ pcs$141.81
- 10+ pcs$133.78
- 100+ pcs$126.21
- 500+ pcs$119.07
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Boyut / Ölçü
- 5.06Lx3.37W x 4.93 H 128.5mmx85.5mmx125.2mm
- Terminal Pozisyonu
- UNSPECIFIED
- Trimadjustable Output
- YES
- Pin Sayısı
- 9
- Efficiency
- 93%
- Applications
- Industrial, ITE (Commercial)
- Min Input Voltage
- 90V
- Output Power
- 480W
- Tip
- Enclosed
- Voltageinput
- 180V~550VAC 2 Phase 254V~780VDC
- Min Output Voltage
- 48V
- Terminal Sayısı
- 10
- Voltage Isolation
- 3kV
- Kurşunsuz
- Lead Free
- Max Output Power
- 480W
- Weight
- 1.7kg
- Onay Kuruluşu
- CB, CE, UL
- Minimum Load Required
- No
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj Tipi
- DIN Rail
- Max Input Voltage
- 264V
- Additional Feature
- ALSO OPERATES WITH DC SUPPLY RANGE OF 254 V TO 780 V
- Depth
- 128.5mm
- Input Voltagenom
- 230V
- Montaj
- DIN Rail
- Current Output1
- 10A
- Parça Durumu
- Active
- Output Voltage
- 48V
- Özellikler
- Adjustable Output, PFC
- Fabrika Tedarik Süresi
- 14 Weeks
- Çalışma Sıcaklığı
- -30°C~70°C With Derating
- Seri

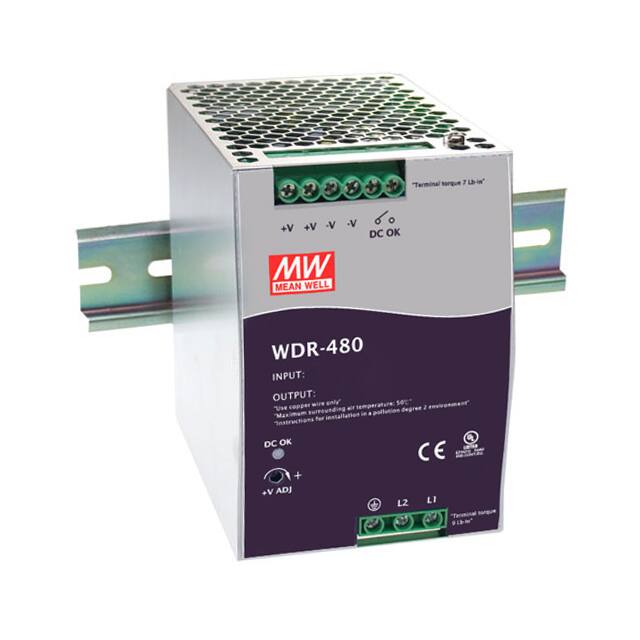

- WDR-480 (480W)
- Kılıf / Paket
- Metal
- Number Of Outputs
- 1
- Terminal Formu
- UNSPECIFIED
- Output Current
- 10A
- Fonksiyon Sayısı
- 1
- Max Output Voltage
- 55V
