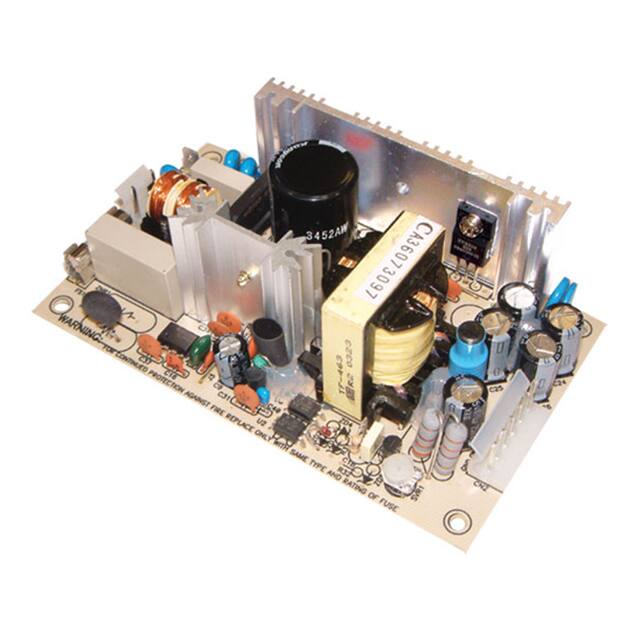

PS-65-24

Specifications

Tip

Open Frame

Çalışma Sıcaklığı

-10°C~70°C With Derating

Depth

76mm

Output Current

3A

Montaj Tipi

Chassis Mount

Parça Durumu

Last Time Buy

Current Output1

2.7A

Applications

ITE (Commercial)

Output Voltage

24V

Minimum Load Required

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Güç (Watt)

65W

Ripple Voltage Main Out

0.03536Vrms

Max Output Power

64.8W

Boyut / Ölçü

5.00Lx2.99W x 1.65 H 127.0mmx76.0mmx42.0mm

Onay Kuruluşu

CB, CE, cURus, TUV

Montaj

Panel, Screw

Seri

PS-65 (65W)

Output Power

64.8W

Efficiency

80%

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Kurşunsuz

Lead Free

Pin Sayısı

8

Number Of Outputs

1

Özellikler

Adjustable Output, Universal Input

RoHS Durumu

ROHS3 Compliant

Voltage Isolation

3kV

Max Input Current

1.2A

Yükseklik

27.94mm
