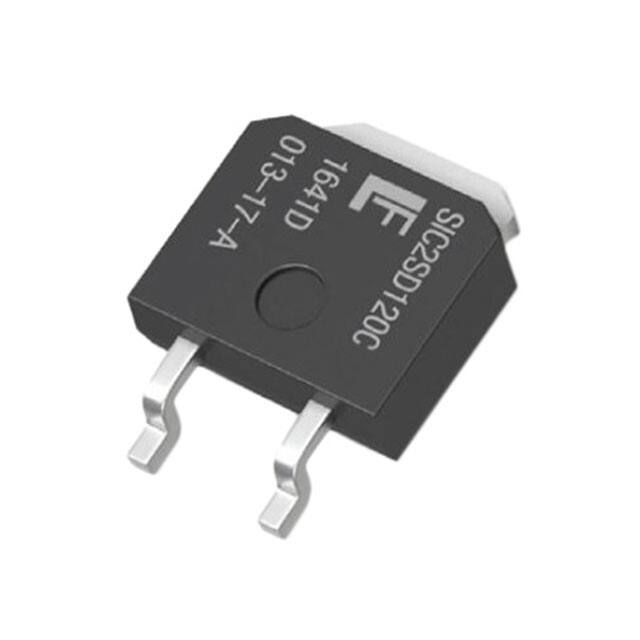

LSIC2SD120C10

Specifications

Forward Current

33A

Configuration

SINGLE

Montaj Tipi

Surface Mount

Power Dissipation Max

176W

Voltage Forward Vf Max If

1.8V @ 10A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Parça Durumu

Active

Speed

No Recovery Time > 500mA (Io)

Applications

EFFICIENCY

Number Of Elements

1

Terminal Sayısı

2

Terminal Formu

GULL WING

Case Connection

CATHODE

Number Of Phases

1

REACH Uyumluluk Kodu

unknown

Terminal Pozisyonu

SINGLE

Yayın Yılı

2017

Operating Temperature Junction

-55°C~175°C

Seri

Gen2

Reverse Recovery Time

0ns

Voltage Dc Reverse Vr Max

1200V

Fabrika Tedarik Süresi

38 Weeks

HTS Kodu

8541.10.00.80

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Current Reverse Leakage Vr

100μA @ 1200V

Ambalaj

Tape & Reel (TR)

Diode Type

Silicon Carbide Schottky

RoHS Durumu

ROHS3 Compliant

Current Average Rectified Io

33A DC

Additional Feature

PD-CASE

Reverse Currentmax

100μA

Operating Temperature Max

175°C

Pin Sayısı

2

Capacitance Vr F

582pF @ 1V 1MHz

Yüzey Montaj

YES

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
