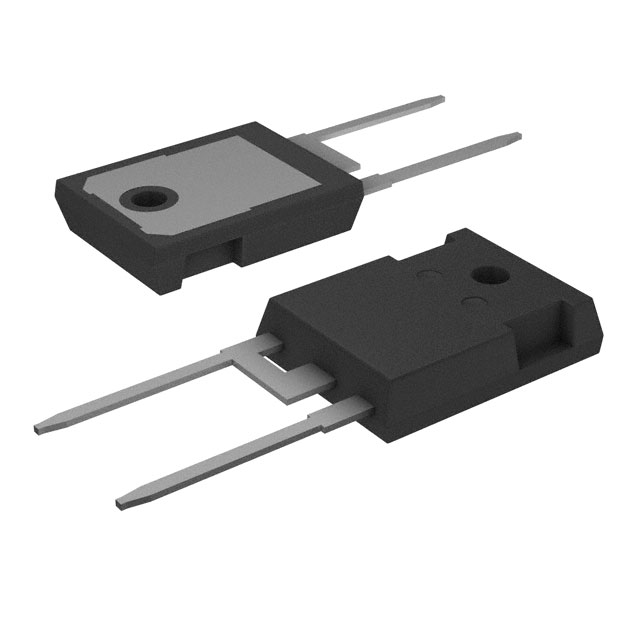

LFUSCD30120B

Specifications

Montaj

Through Hole

Operating Temperature Junction

175°C Max

Diode Type

Silicon Carbide Schottky

Nonrep Pk Forward Currentmax

120A

Voltage Dc Reverse Vr Max

1200V

Terminal Pozisyonu

SINGLE

RoHS Durumu

ROHS3 Compliant

Jesd30 Code

R-PSFM-T3

Current Average Rectified Io

15A DC

Kurşunsuz

Lead Free

Reverse Currentmax

375μA

Element Configuration

Common Cathode

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Max Reverse Voltage Dc

1.2kV

Applications

EFFICIENCY

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8541.10.00.80

Diode Configuration

1 Pair Common Cathode

Voltage Forward Vf Max If

1.7V @ 15A

Additional Feature

PD-CASE

Kılıf / Paket

TO-247-3

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Operating Temperature Max

175°C

Average Rectified Current

15A

Fabrika Tedarik Süresi

17 Weeks

Current Reverse Leakage Vr

375μA @ 1200V

Power Dissipation Max

374W

Montaj Tipi

Through Hole

Number Of Phases

1

Terminal Sayısı

3

ECCN Kodu

EAR99

Ambalaj

Tube

Number Of Elements

2

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2007
