IXFN52N100X

Specifications

Drain To Source Voltage Vdss

1000 V

Current Continuous Drain Id25

44A (Tc)

Rds On Max Id Vgs

125mOhm @ 26A, 10V

Vgsth Max Id

6V @ 4mA

Power Dissipation Max

830W (Tc)

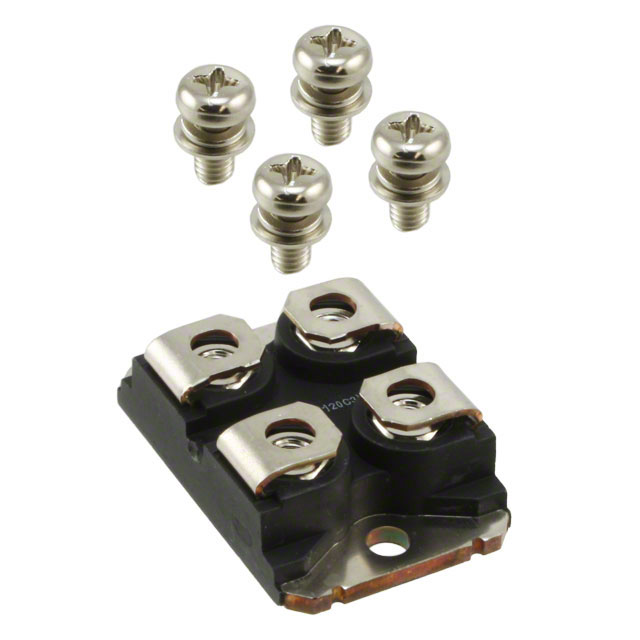

Kılıf / Paket

SOT-227-4, miniBLOC

Fet Type

N-Channel

Vgs Max

±30V

Çalışma Sıcaklığı

-55°C ~ 150°C (TJ)

Drive Voltage Max Rds On Min Rds On

10V

Seri

HiPerFET™, Ultra X

Input Capacitance Ciss Max Vds

6725 pF @ 25 V

Gate Charge Qg Max Vgs

245 nC @ 10 V

Temel Ürün No

IXFN52

Montaj Tipi

Chassis Mount

Ambalaj

Tube

Parça Durumu

Active

Tedarikçi Cihaz Paketi

SOT-227B
