Volume pricing
- 1+ pcs$3.85
- 10+ pcs$3.64
- 100+ pcs$3.43
- 500+ pcs$3.24
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

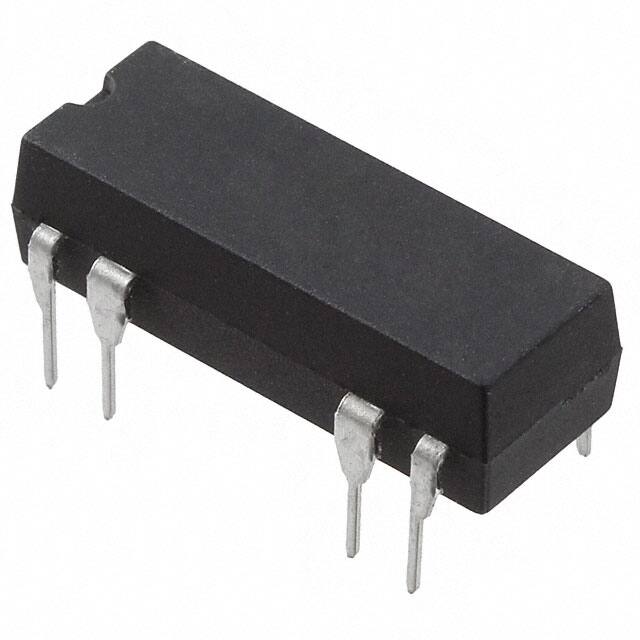

Specifications
- Terminal Stili
- PC Pin
- Contact Voltagedcmax
- 200V
- Must Operate Voltage
- 16VDC
- Coilresistance
- 2.15kOhm
- Yayın Yılı
- 2007
- Contact Rating Current
- 500mA
- Insulation Resistance
- 10000000000Ohm
- REACH Uyumluluk Kodu
- unknown
- Dielectric Strength Between Coil And Contacts
- 500 Vrms
- Contact Resistance
- 150mOhm
- Terminal
- PC Pin
- Terminal Sayısı
- 4
- Coil Type
- Non Latching
- Coil Voltage
- 24VDC
- Input Switching Control Type
- Random
- Dielectric Strength Between Open Contacts
- 250 Vrms
- Throw Configuration
- SPST
- Operate Time
- 1ms
- Ambalaj
- Tube
- Body Breadth
- 7.24 mm
- Must Release Voltage
- 2VDC
- Montaj Tipi
- Through Hole
- Switching Voltage
- 200VDC -Max
- Contact Dc Max Rating R Load
- 0.5A@200VDC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Coil Voltage Dc
- 24V
- RoHS Durumu
- ROHS3 Compliant
- Contact Dc Max Power Rating R Load
- 10W@200VDC
- Physical Dimension
- 19.05mm x 7.24mm x 7.5mm
- Özellikler
- Diode, Electrostatic Shield
- Coil Current
- 11.1mA
- Parça Durumu
- Active
- Kontak Formu
- SPST-NO (1 Form A)
- Release Time
- 1 ms
- Body Height
- 7.5mm
- Length Termination
- 0.003 inch
- Montaj
- Through Hole
- Seri
- HE700
- Çalışma Sıcaklığı
- -40°C~85°C
- Body Length Or Diameter
- 19.05mm
