Specifications
- Contact Rating Current
- 500mA
- Contactoutput Supply Type
- DC
- Coilresistance
- 3.29kOhm
- Coil Voltage
- 24VDC
- Insulation Resistance
- 10000000000Ohm
- Coil Voltage Dc
- 24V
- Seri
- 200
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Input Switching Control Type
- Random
- Coil Current
- 7.3mA
- Dielectric Strength Between Coil And Contacts
- 1500 Vrms
- Montaj Tipi
- Through Hole
- Ambalaj
- Bulk
- Body Height
- 10mm
- Kurşunsuz
- Lead Free
- REACH Uyumluluk Kodu
- unknown
- Parça Durumu
- Active
- Operate Time
- 1ms
- Release Time
- 1 ms
- Body Length Or Diameter
- 32.5mm
- Throw Configuration
- SPST
- Kontak Formu
- SPST-NO (1 Form A)
- Terminal Stili
- PC Pin
- Seal Rating
- Sealed - Hermetically
- Must Release Voltage
- 1.4VDC
- Yayın Yılı
- 2001
- Must Operate Voltage
- 16.8VDC
- Dielectric Strength Between Open Contacts
- 250 Vrms
- Coilinput Supply Type
- DC
- RoHS Durumu
- ROHS3 Compliant
- Çalışma Sıcaklığı
- -40°C~85°C
- Relay Type
- Reed
- Terminal
- PC Pin
- Coil Type
- Non Latching
- Length Termination
- 0.0032 inch
- Switching Voltage
- 200VDC -Max
- Contact Resistance
- 150mOhm
- Montaj
- Through Hole
- Body Breadth
- 10.5 mm

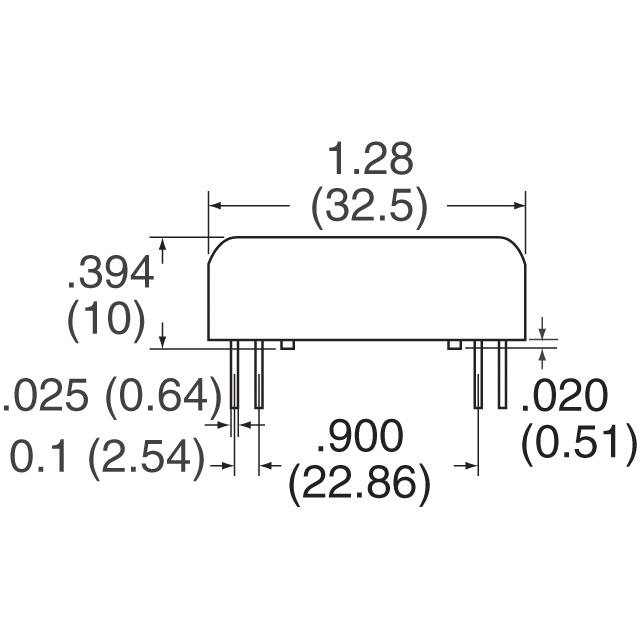

- Physical Dimension
- 32.5mm x 10.5mm x 10mm
