Volume pricing
- 1+ pcs$0.85
- 10+ pcs$0.80
- 100+ pcs$0.76
- 500+ pcs$0.71
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Kurşunsuz Kodu
- yes
- Time To Trip
- 6.5s
- Terminal Shape
- WIRE
- Fabrika Tedarik Süresi
- 10 Weeks
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -40°C~125°C
- Ihs Manufacturer
- LITTELFUSE INC
- Direnç
- 0.01 Ω
- Package Description
- ,
- Nem Hassasiyeti (MSL)
- Not Applicable
- Boyut / Ölçü
- 0.441Lx0.118W 11.20mmx3.00mm
- Number Of Terminals
- 2
- Rohs Code
- Yes
- Rated Power Dissipation P
- 4.1 W
- Part Life Cycle Code
- Active
- Rated Ac Voltage Urac
- 16 V
- Hold Current
- 6A
- Üretici Parça No

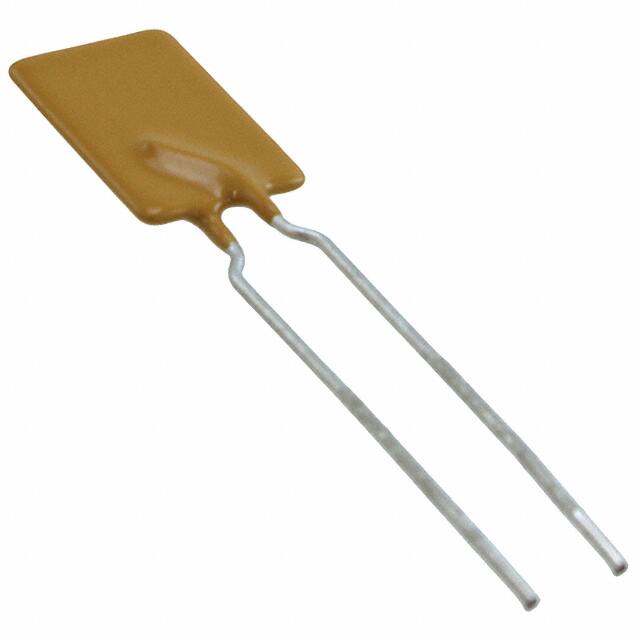

- AHRF600
- Seri
- PolySwitch®, AHRF
- Yüzey Montaj
- NO
- Voltage Max
- 16V
- Mounting Feature
- THROUGH HOLE MOUNT
- Packing Method
- BULK
- Additional Feature
- RESISTANCE RANGE(MIN-MAX): 0.1-0.22
- REACH Uyumluluk Kodu
- unknown
- Resistor Type
- PTC THERMISTOR
- Ambalaj
- Bulk
- RoHS Durumu
- ROHS3 Compliant
- Ratings
- AEC-Q200
- Risk Rank
- 4.75
- Montaj Tipi
- Through Hole
- Kılıf / Paket
- Radial, Disc
- Resistance Post Trip R1 Max
- 32mOhm
- Resistance Initial Ri Min
- 10mOhm
- Maks. Oturma Yüksekliği
- 0.827 21.00mm
- Tip
- Polymeric
- Current Trip It
- 12A
- Trip Current
- 12A
- Operating Temperaturemax
- 125 °C
- Terminal Placement
- RADIAL
