Volume pricing
- 1+ pcs$1.51
- 10+ pcs$1.43
- 100+ pcs$1.35
- 500+ pcs$1.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Yayın Yılı
- 2007
- Thermistor Application
- TEMPERATURE SENSING
- Operating Temperaturemax
- 125 °C
- Trip Current
- 27A
- Resistance Post Trip R1 Max
- 10mOhm
- Montaj Tipi
- Through Hole
- Maks. Oturma Yüksekliği
- 1.130 28.70mm
- Resistance Initial Ri Min
- 3.4mOhm
- Ratings
- AEC-Q200
- Ambalaj
- Tape & Reel (TR)
- Voltage Max
- 16V
- Yüzey Montaj
- NO
- Packing Method
- TR
- Hold Current
- 13A
- Part Life Cycle Code
- Active
- Seated Plane Height
- 28.7 mm

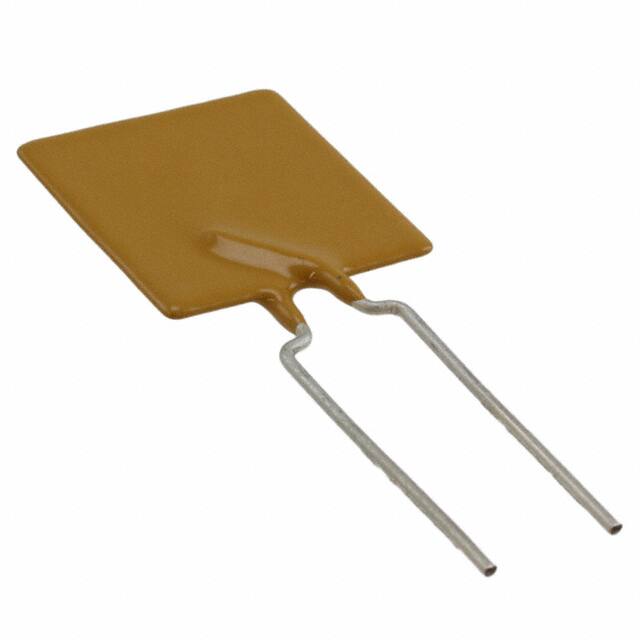

- Üretici Parça No
- AHRF1300-2
- Ihs Manufacturer
- LITTELFUSE INC
- Nem Hassasiyeti (MSL)
- Not Applicable
- Package Description
- ,
- Direnç
- 0.0034 Ω
- Time To Trip
- 15s
- Fabrika Tedarik Süresi
- 10 Weeks
- Terminal Shape
- WIRE
- Terminal Placement
- RADIAL
- Lead Spacing
- 0.400 10.15mm
- Package Shape
- RECTANGULAR PACKAGE
- Current Trip It
- 27A
- Tip
- Polymeric
- Kılıf / Paket
- Radial, Disc
- Resistor Type
- PTC THERMISTOR
- Lead Diameter
- 1 mm
- REACH Uyumluluk Kodu
- unknown
- Risk Rank
- 5.23
- RoHS Durumu
- ROHS3 Compliant
- Mounting Feature
- THROUGH HOLE MOUNT
- Additional Feature
- RESISTANCE RANGE(MIN-MAX): 0.0034-0.0069
- Rated Ac Voltage Urac
- 16V
- Rohs Code
- Yes
- Rated Power Dissipation P
- 6.9W
