Volume pricing
- 1+ pcs$0.48
- 10+ pcs$0.46
- 100+ pcs$0.43
- 500+ pcs$0.41
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj Tipi
- Through Hole
- Seri
- POLY-FUSE®, 72R
- Terminal Sayısı
- 2
- Ambalaj
- Tape & Box (TB)
- Hold Current
- 900mA
- Tip
- Polymeric
- Max Current Rating
- 40A
- Time To Trip
- 7.2s
- Thermistor Application
- OVERLOAD PROTECTION
- ECCN Kodu
- EAR99
- Onay Kuruluşu
- cURus, TUV
- Terminal
- Radial
- Maks. Oturma Yüksekliği
- 0.622 15.80mm
- Voltage Rated Dc
- 72V
- Akım Değeri
- 40A
- Lead Pitch
- 5.1mm
- Parça Durumu
- Active
- JESD-609 Kodu
- e3
- Yüzey Montaj
- NO
- Power Dissipation
- 990mW
- HTS Kodu
- 8533.40.80.70
- Lead Spacing
- 0.201 5.10mm
- Resistance Initial Ri Min
- 200mOhm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Operating Supply Voltage
- 72V
- Current Hold Ih Max
- 900mA
- Packing Method
- AMMO PACK; TR
- Trip Current
- 1.8A
- Yayın Yılı
- 2010

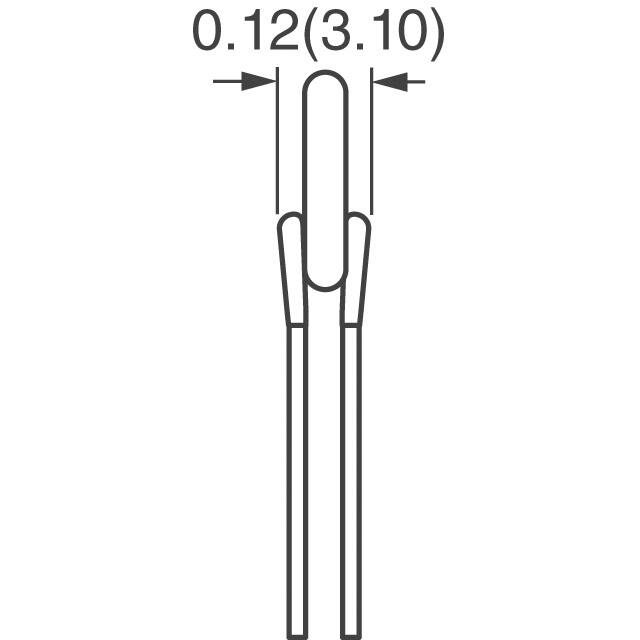

- Boyut / Ölçü
- 0.441Dia x 0.122 T 11.20mmx3.10mm
- Terminal Kaplaması
- Tin (Sn)
- Additional Feature
- 0.2 TO 0.47 OHMS MEASURED AT 23 DEG CEL
- Terminal Shape
- WIRE
- Fabrika Tedarik Süresi
- 12 Weeks
- Direnç
- 470mOhm
- RoHS Durumu
- ROHS3 Compliant
- Çalışma Sıcaklığı
- -40°C~85°C
- Reach Svhc
- No SVHC
- Kılıf / Paket
- Radial, Disc
- Resistance Post Trip R1 Max
- 470mOhm
