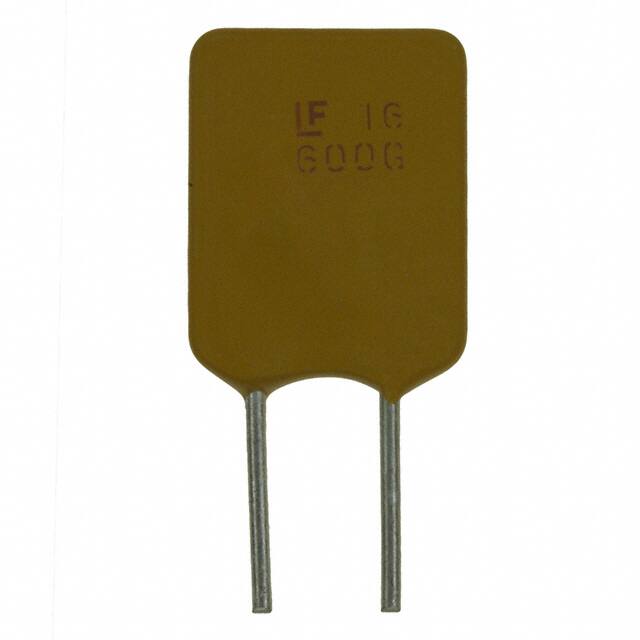

Specifications
- Akım Değeri
- 100A
- Packing Method
- AMMO PACK
- Direnç
- 28mOhm
- Lead Pitch
- 5.1mm
- Resistance Post Trip R1 Max
- 28mOhm
- Time To Trip
- 3.3s
- Onay Kuruluşu
- cURus, TUV
- Tip
- Polymeric
- Çalışma Sıcaklığı
- -40°C~85°C
- Terminal
- Radial
- Terminal Shape
- WIRE
- Max Current Rating
- 100A
- RoHS Durumu
- ROHS3 Compliant
- Maks. Oturma Yüksekliği
- 0.673 17.10mm
- Operating Supply Voltage
- 16V
- Reach Svhc
- No SVHC
- Lead Spacing
- 0.201 5.10mm
- Yüzey Montaj
- NO
- Resistance Initial Ri Min
- 10mOhm
- Yayın Yılı
- 2010
- Power Dissipation
- 2.8W
- Terminal Kaplaması
- Tin (Sn)
- Hold Current
- 6A
- JESD-609 Kodu
- e3
- Trip Current
- 10.2A
- Ambalaj
- Tape & Box (TB)
- Terminal Sayısı
- 2
- Parça Durumu
- Obsolete
- Nem Hassasiyeti (MSL)
- Not Applicable
- ECCN Kodu
- EAR99
- Max Voltage Rating Dc
- 16V
- Current Hold Ih Max
- 6A
- Boyut / Ölçü
- 0.421Lx0.118W 10.70mmx3.00mm
- Thermistor Application
- TEMPERATURE SENSING
- Seri
- POLY-FUSE®, 16R
- Montaj Tipi
- Through Hole
- Kılıf / Paket
- Radial, Disc
- HTS Kodu
- 8533.40.80.70
- Voltage Rated Dc
- 16V
- REACH Uyumluluk Kodu
- unknown
