Specifications
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Kılıf / Paket

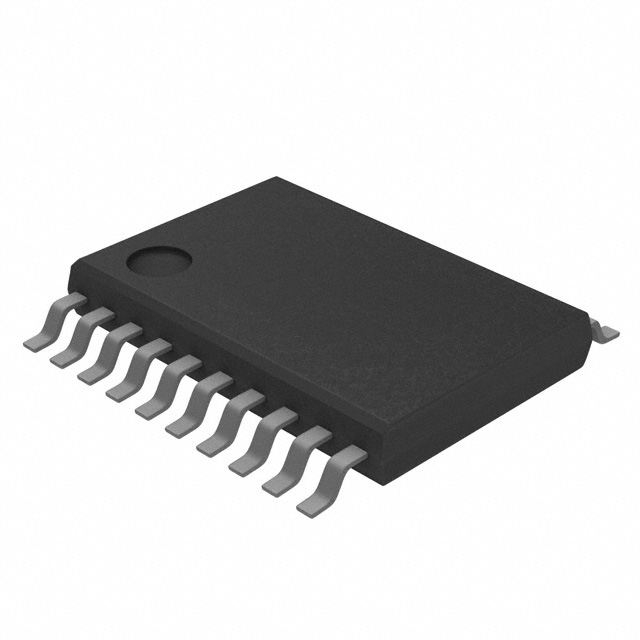

- 20-TSSOP (0.173, 4.40mm Width)
- Sample And Hold Track And Hold
- SAMPLE
- Integral Nonlinearity Inl
- 1 LSB
- Reference Type
- External, Internal
- Interface
- I2C, Serial
- Reach Svhc
- No SVHC
- Montaj
- Surface Mount
- Tepe Reflow Sıcaklığı (°C)
- 250
- Min Supply Voltage
- 4.75V
- Fonksiyon Sayısı
- 1
- Terminal Pozisyonu
- DUAL
- Uzunluk
- 6.5mm
- RoHS Durumu
- ROHS3 Compliant
- Özellikler
- Selectable Address
- Power Dissipation
- 15mW
- Max Power Dissipation
- 15mW
- Temel Parça No
- LTC2309
- Giriş Tipi
- Differential, Single Ended
- Number Of Bits
- 12
- Output Bit Code
- BINARY, 2'S COMPLEMENT BINARY
- Number Of Inputs
- 8
- Polarity
- Bipolar, Unipolar
- Yayın Yılı
- 2010
- Architecture
- SAR
- Number Of Analog In Channels
- 8
- Operating Supply Voltage
- 5V
- Pin Sayısı
- 20
- Ratio Shadc
- 1:1
- Genişlik
- 4.4mm
- JESD-609 Kodu
- e3
- Pin Sayısı
- 20
- Linearity Errormax El
- 0.0244%
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 12 Weeks
- Configuration
- MUX-S/H-ADC
- Terminal Formu
- GULL WING
- Sampling Rate Per Second
- 14k
- Converter Type
- ADC, SUCCESSIVE APPROXIMATION
- Supply Type
- Single
