Specifications
- Fabrika Tedarik Süresi
- 8 Weeks
- Input Voltage Min
- 2.7V
- Temel Parça No
- LT1513
- Terminal Sayısı
- 7
- Current Charging
- Constant - Programmable
- Terminal Formu
- GULL WING
- Terminal Kaplaması
- Matte Tin (Sn) - with Nickel (Ni) barrier
- Switching Frequencymax
- 580kHz
- Yüzey Montaj
- YES
- Fonksiyon Sayısı
- 1
- Number Of Cells
- 1
- Battery Pack Voltage
- 20V Max
- Tepe Reflow Sıcaklığı (°C)
- 260
- Parça Durumu
- Active
- REACH Uyumluluk Kodu
- not_compliant
- Montaj Tipi
- Surface Mount
- Besleme Gerilimi
- 5V
- Input Voltage Max
- 25V
- Power Supplies
- 5V
- Ambalaj
- Tube
- Supply Currentmax Isup
- 5.5mA
- JESD-609 Kodu
- e3
- Charge Current Max
- 2A
- Voltage Supply Max
- 25V

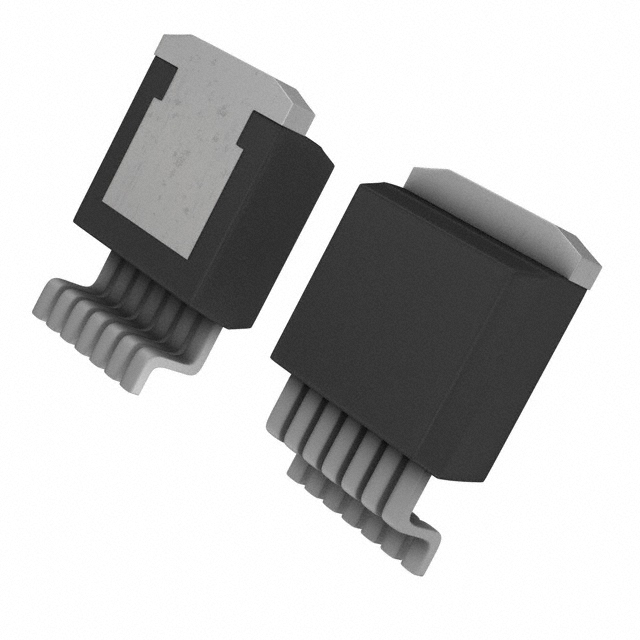

- Kılıf / Paket
- TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
- Output Currentmax
- 5.4A
- Qualification Status
- Not Qualified
- Jesd30 Code
- R-PSSO-G7
- RoHS Durumu
- ROHS3 Compliant
- Terminal Pozisyonu
- SINGLE
- Tepe Reflow Süresi (maks. sn)
- 30
- ECCN Kodu
- EAR99
- Genişlik
- 8.89mm
- Maks. Oturma Yüksekliği
- 4.877mm
- Control Mode
- CURRENT-MODE
- Çalışma Sıcaklığı
- 0°C~125°C TJ
- Yayın Yılı
- 2003
- Switcher Configuration
- SINGLE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pin Sayısı
- 7
