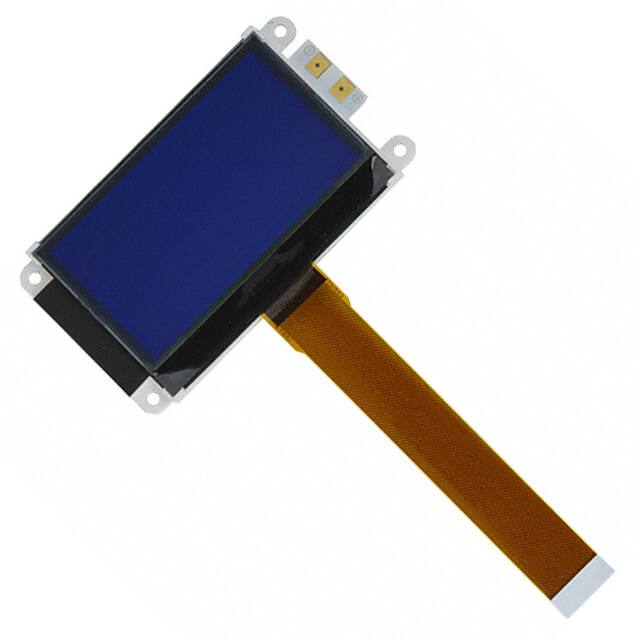

F-51553GNBJ-LW-AFN

Specifications

Vertical Pixel Count

64 Pixel

Backlight

LED - White

Background Color

Blue

Interface

Parallel/Serial

Supply Voltagemax Vsup

9.1V

Graphics Color

White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Overall Length

89.7mm

Overall Height

49.8mm

Optoelectronic Device Type

GRAPHIC DOT MATRIX LCD DISPLAY

Dot Size

0.48mm Wx0.48mm H

Overall Depth

6mm

Parça Durumu

Obsolete

Horizontal Pixel Count

128 Pixel

Yayın Yılı

2006

Dot Pixels

128 x 64

Operating Temperature Min

-20°C

Fluid Type

STN

Besleme Gerilimi

8.5V

Supply Voltagemin Vsup

7.8V

Display Mode

Transmissive

Operating Temperature Max

70°C

Viewing Area

66.80mm W x 35.50mm H

Pixel Format

128X64

Dot Pitch

0.50mm Wx0.50mm H

Display Type

STN - Super-Twisted Nematic
