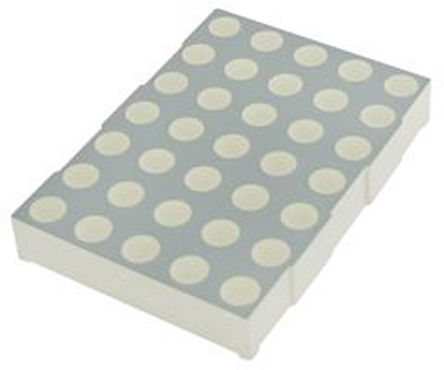

TC20-11SYKWA

Specifications

Wavelength

590 nm

Yayın Yılı

2013

Montaj

Through Hole

Number Of Leds

35

Dominant Wavelength Nm

590

Eu Rohs

Compliant

Pin Sayısı

14

Fabrika Tedarik Süresi

8 Weeks

Maximum Power Dissipation Mw

75

Parça Durumu

Active

Yükseklik

8.382mm

Ppap

No

Forward Currentmax

0.03A

Character Height

52mm

Package Width

38.15

Test Current Ma

10

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Character Width

36mm

Display Type

Dot Matrix

Intensity Ucd

160000

Boyut / Ölçü

2.09Lx1.98W x 0.33 H 53.1mmx38.2mmx8.5mm

Mounting

Through Hole

Min. Çalışma Sıcaklığı

-40°C

Peak Wavelength Nm

590

Maximum Forward Current Ma

30

Minimum Operating Temperature C

-40

Voltage Forward Vf Typ

2V

ECCN Kodu

EAR99

Lead Shape

Through Hole

Fonksiyon Sayısı

1

Digit Size In

2

Configuration

5 x 7

Tip

Module

Number Of Characters

1

Maximum Reverse Current Ua

10

Maks. Çalışma Sıcaklığı

85°C

Standard Package Name

DIP

Supplier Package

DIP

Maximum Reverse Voltage V

5
