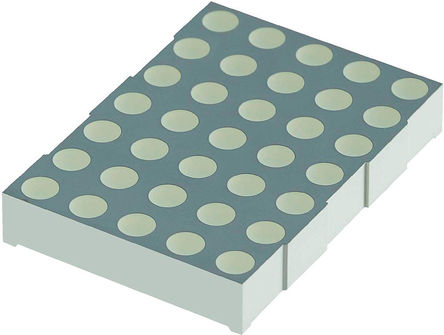

TC20-11CGKWA

Specifications

Wavelength Peak

574 nm

Renk

Green

Internal Connection

Common Anode Row, Common Cathode Column

Luminous Intensity

52 mcd

Maximum Operating Temperature C

85

Maximum Reverse Voltage V

5

Supplier Package

DIP

Maks. Çalışma Sıcaklığı

85°C

Standard Package Name

DIP

Maximum Reverse Current Ua

10

Number Of Characters

1

Character Displayed

Numeric

Package Length

53

Pcb Changed

14

Eccn Us

EAR99

Reach Svhc

No SVHC

Maximum Forward Voltage V

2.5

Package Height

8.45

Automotive

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fonksiyon Sayısı

1

ECCN Kodu

EAR99

Lead Shape

Through Hole

Voltage Forward Vf Typ

2.1V

Peak Wavelength Nm

574

Minimum Operating Temperature C

-40

Maximum Forward Current Ma

30

Min. Çalışma Sıcaklığı

-40°C

Tip

Module

Configuration

5 x 7

Digit Size In

2

Forward Current

30mA

Test Current Ma

10

Character Height

52mm

Package Width

38.15

Ppap

No

Yükseklik

8.382mm

Mounting

Through Hole

Boyut / Ölçü

2.09Lx1.98W x 0.33 H 53.1mmx38.2mmx8.5mm

Intensity Ucd

52000
