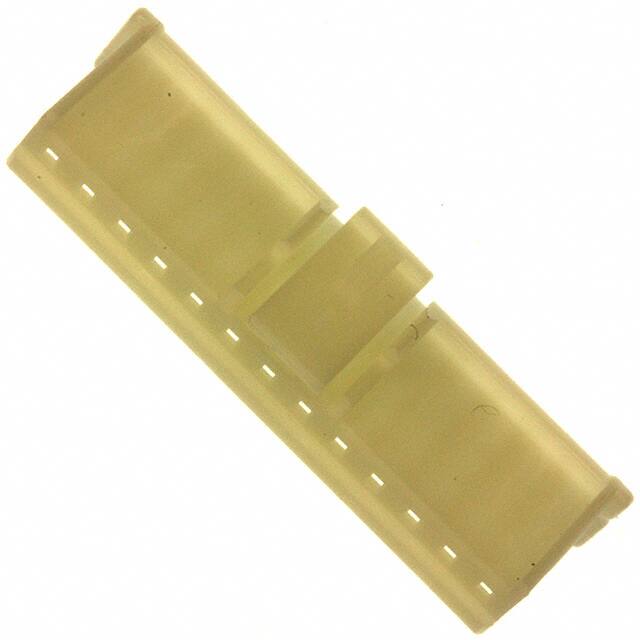

XAP-13V-1

Specifications

Fabrika Tedarik Süresi

16 Weeks

Bodyshell Style

PLUG

Contact Termination

Crimp

Contact Type

Female Socket

Iec Conformance

NO

Fastening Type

Latch Lock

Pozisyon Sayısı

13

Connector Type

Receptacle

Genişlik

6.9mm

Option

GENERAL PURPOSE

Filter Feature

NO

HTS Kodu

8536.69.40.40

Note

Contacts Not Included

Uzunluk

34.8mm

Ambalaj

Bulk

Orientation

Straight

RoHS Durumu

RoHS Compliant

Max Current Rating

3A

ECCN Kodu

EAR99

Min. Çalışma Sıcaklığı

-25°C

Mixed Contacts

NO

Wire Gauge Min

20 AWG

Montaj

Free Hanging

Pitch

0.098 2.50mm

Maks. Çalışma Sıcaklığı

85°C

Contact Finish Mating

NOT SPECIFIED

Max Voltage Rating Ac

250V

Gender

Female

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mil Conformance

NO

Housing Material

Polyamide

Total Number Of Contacts

13

Depth

9.5mm

Ul Flammability Code

94V-0

Montaj Tipi

Free Hanging (In-Line)

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

White

Renk

Natural

Sıra Sayısı

1
