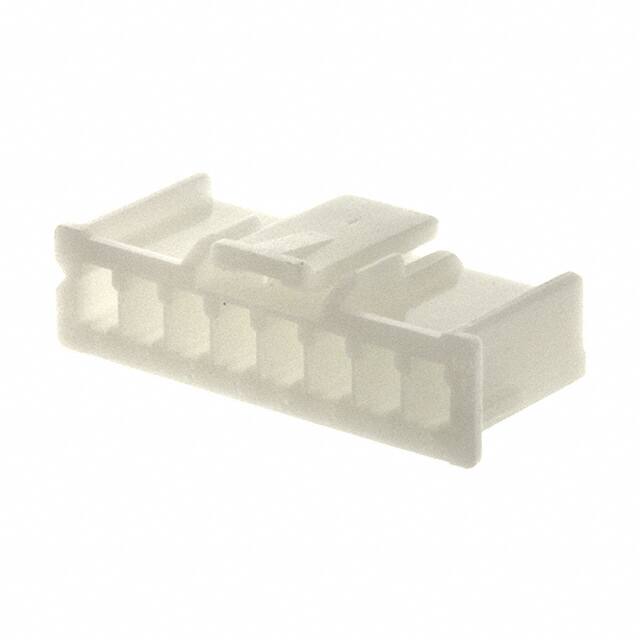

XAP-08V-1

Specifications

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Gender

Female

Mil Conformance

NO

Housing Material

Polyamide

Depth

9.5mm

Wire Gauge Max

28 AWG

Insulation Resistance

1GOhm

Kurşunsuz

Lead Free

Parça Durumu

Active

Yayın Yılı

2004

Housing Color

White

Wirecable Gauge

20 AWG

Renk

Natural

Note

Contacts Not Included

Ambalaj

Bulk

Bodyshell Style

PLUG

Yükseklik

9.5mm

Contact Type

Female Socket

Iec Conformance

NO

Fastening Type

Latch Lock

Connector Type

Receptacle

Montaj

Free Hanging, Panel

Maks. Çalışma Sıcaklığı

85°C

Mixed Contacts

NO

Min. Çalışma Sıcaklığı

-25°C

Max Current Rating

3A

ECCN Kodu

EAR99

Contact Resistance

10mOhm

Voltage Rated Dc

250V

Montaj Tipi

Free Hanging (In-Line)

Flammability Rating

UL94 V-0

Total Number Of Contacts

8

Material

Nylon

Seri

XA

Contact Materials

Brass

Din Conformance

NO

Kurşunsuz Kodu

yes

Sıra Sayısı

1
