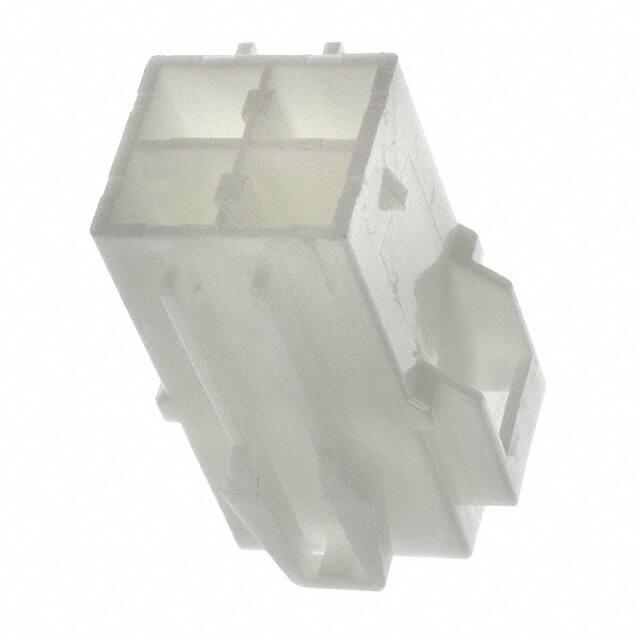

VLR-04V

Specifications

Contact Type

Male Pin

Contact Finish Mating

NOT SPECIFIED

Akım Değeri

18A

Wirecable Gauge

12 AWG

Uzunluk

20.2mm

Yayın Yılı

2002

Voltage Rated Dc

600V

Maks. Çalışma Sıcaklığı

90°C

Housing Material

Nylon

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Shell Material

POLYAMIDE66

Genişlik

29.5mm

Contact Materials

Bronze, Tin

Flammability Rating

UL94 V-0

Depth

29.5mm

Option

GENERAL PURPOSE

Max Current Rating

20A

RoHS Durumu

RoHS Compliant

Row Spacing

8.2804 mm

Panel Thickness

1.6mm

Min. Çalışma Sıcaklığı

-25°C

Kurşunsuz Kodu

yes

Contact Resistance

10mOhm

Iec Conformance

NO

Orientation

Straight

Fastening Type

Latch Holder

Contact Termination

Crimp

Wire Gauge Max

22 AWG

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Renk

White

Working Voltage

600V

Mil Conformance

NO

Max Voltage Rating Ac

600V

Connector Type

Receptacle

Total Number Of Contacts

4

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

18 Weeks

Contact Gender

FEMALE
