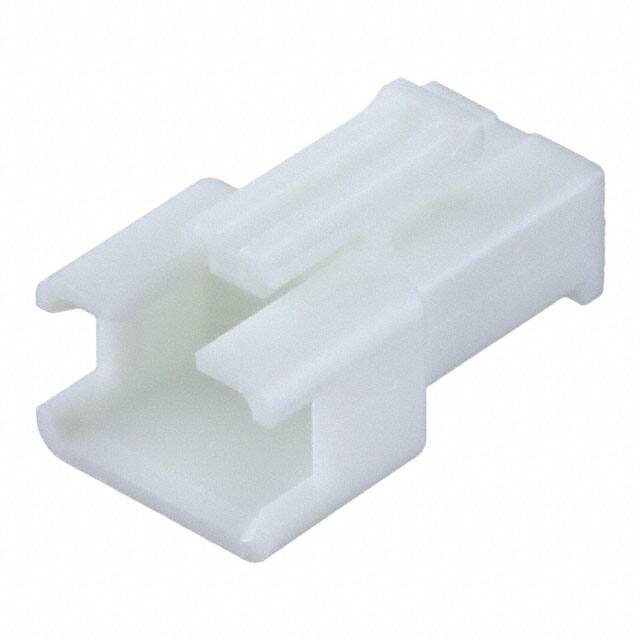

SMR-03V-N

Specifications

RoHS Durumu

RoHS Compliant

Contact Materials

Bronze

Wire Gauge Max

28 AWG

Ambalaj

Bulk

Wire Gauge Min

22 AWG

Note

Contacts Not Included

Iec Conformance

NO

Montaj

Free Hanging, Panel

Contact Plating

Tin

Kurşunsuz

Lead Free

Sıra Sayısı

1

Contact Resistance

10mOhm

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Contact Finish Mating

NOT SPECIFIED

Fabrika Tedarik Süresi

18 Weeks

Max Voltage Rating Ac

250V

Uzunluk

10.5mm

Contact Termination

Crimp

Housing Color

White

Yayın Yılı

2002

Depth

7.5mm

Voltage Rated Dc

250V

Maks. Çalışma Sıcaklığı

85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Voltage Rated Ac

250V

Number Of Poles

3

Working Voltage

250V

Pitch

0.098 2.50mm

Fastening Type

Latch Lock

Min. Çalışma Sıcaklığı

-25°C

Max Current Rating

3A

Housing Material

Polyamide

Lead Pitch

2.5mm

Material

Nylon

Mil Conformance

NO

Reach Svhc

No SVHC

Montaj Tipi

Free Hanging (In-Line)

Contact Type

Male Pin
