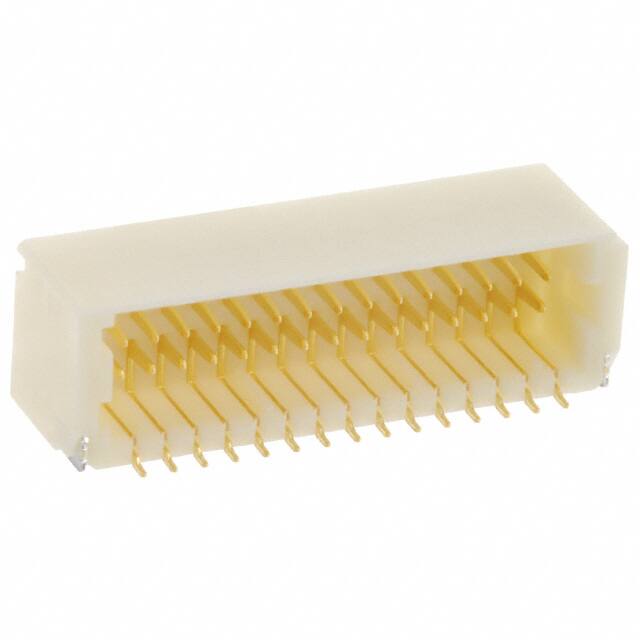

SM30B-SRDS-G-TF(LF)(SN)

Specifications

Number Of Positions Loaded

All

Contact Shape

Square

Ul Flammability Code

94V-0

Fastening Type

Push-Pull

Mixed Contacts

NO

Connector Type

Header

Terminal Adımı

1mm

Din Conformance

NO

Yayın Yılı

2008

Özellikler

Solder Retention

Montaj Tipi

Surface Mount, Right Angle

JESD-609 Kodu

e4

Reach Svhc

No SVHC

Seri

SHD

Akım Değeri

1A

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

Material Flammability Rating

UL94 V-0

Additional Feature

SIDE ENTRY, LOW PROFILE

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Terminal

Solder

RoHS Durumu

RoHS Compliant

Housing Color

Natural

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Right Angle

Kurşunsuz Kodu

yes

Contact Type

Male Pin

Housing Material

Nylon

Total Number Of Contacts

30

Filter Feature

NO

Pitch Mating

0.039 1.00mm

Option

GENERAL PURPOSE

Style

Board to Cable/Wire

Gender

Male

Pozisyon Sayısı

30

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz

Lead Free
