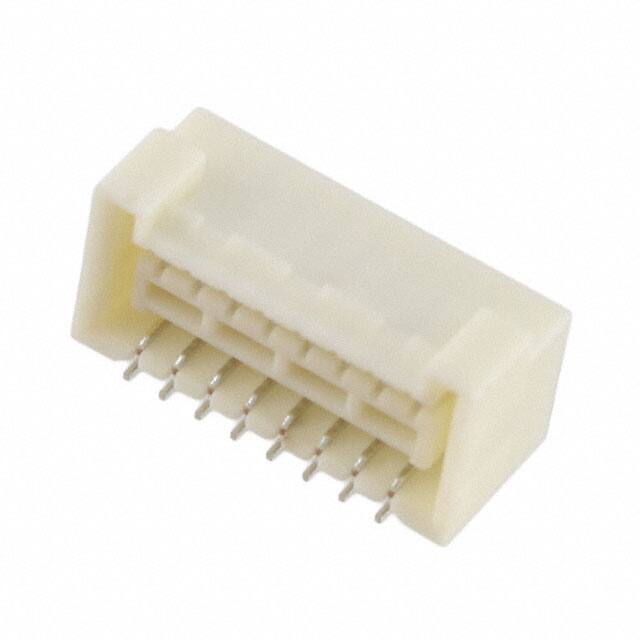

SM16B-ZPDSS-TF(LF)(SN)

Specifications

Terminal Adımı

1.5mm

Connector Type

Header

Contact Type

Outer Shroud Contact

Pozisyon Sayısı

16

Insulation Materials

Polyamide (PA), Nylon

Gender

Male

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Montaj

Surface Mount

Fabrika Tedarik Süresi

16 Weeks

Filter Feature

NO

Contact Finish Mating

Tin

Seri

ZPD

Current Rating Amps

2A

Contact Materials

Copper Alloy

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Reach Svhc

No SVHC

Mixed Contacts

NO

Pitch Mating

0.059 1.50mm

Option

GENERAL PURPOSE

Iec Conformance

NO

Contact Shape

Rectangular

Çalışma Sıcaklığı

-25°C~85°C

Insulation Height

0.309 7.85mm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

100V

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Parça Durumu

Active

Mil Conformance

NO

Yayın Yılı

2010

Montaj Tipi

Surface Mount, Right Angle

Insulation Color

Natural

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder
