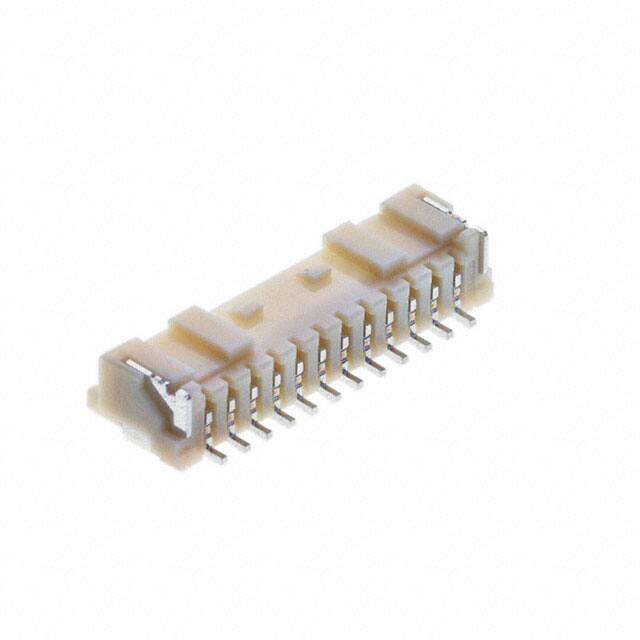

SM12B-PASS-TBT(LF)(SN)

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Iec Conformance

NO

Parça Durumu

Active

Fastening Type

Locking Ramp

Yayın Yılı

2012

Pitch Mating

0.079 2.00mm

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Insulation Height

0.224 5.69mm

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

12

Insulation Color

Natural

Seri

PA

Montaj

Surface Mount

Current Rating Amps

3A

Fabrika Tedarik Süresi

18 Weeks

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Terminal

Solder

Terminal Adımı

2mm

Contact Type

Male Pin

Nominal Gerilim

250V

Filter Feature

NO

Contact Finish Mating

Tin

Özellikler

Pick and Place, Solder Retention

Total Number Of Contacts

12

JESD-609 Kodu

e3

Din Conformance

NO

Option

GENERAL PURPOSE

Mixed Contacts

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Contact Shape

Square
