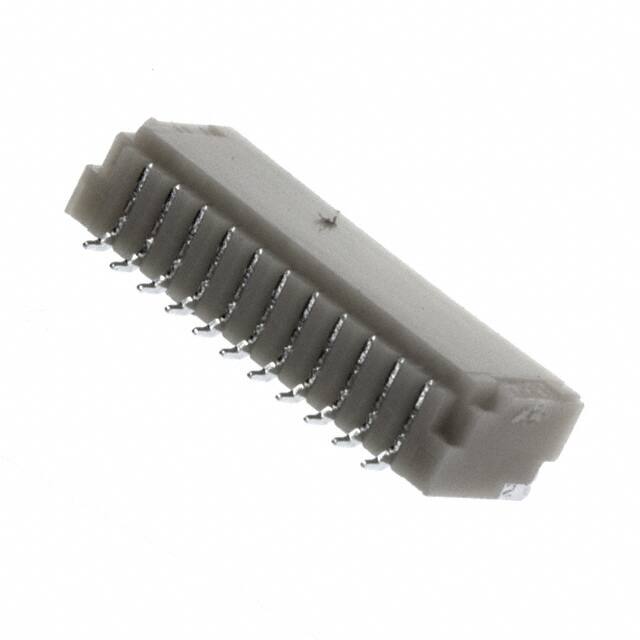

SM11B-SRSS-TB(LF)(SN)

Specifications

Pitch Mating

0.039 1.00mm

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Contact Materials

Copper Alloy

Additional Feature

SIDE ENTRY

Style

Board to Cable/Wire

Iec Conformance

NO

Parça Durumu

Active

Fastening Type

Push-Pull

Yayın Yılı

2005

Material Flammability Rating

UL94 V-0

Housing Material

Nylon

Pozisyon Sayısı

11

HTS Kodu

8536.69.40.40

Montaj

Surface Mount

Seri

SR

Fabrika Tedarik Süresi

16 Weeks

Shrouding

Shrouded - 4 Wall

Gender

Male

Insulation Materials

Polyamide (PA), Nylon

Insulation Height

0.114 2.90mm

Mil Conformance

NO

Total Number Of Contacts

11

JESD-609 Kodu

e3

Din Conformance

NO

Option

GENERAL PURPOSE

Mixed Contacts

NO

Montaj Tipi

Surface Mount, Right Angle

Reach Svhc

No SVHC

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Connector Type

Header

Terminal

Solder

Contact Type

Male Pin

Nominal Gerilim

50V

Filter Feature

NO
