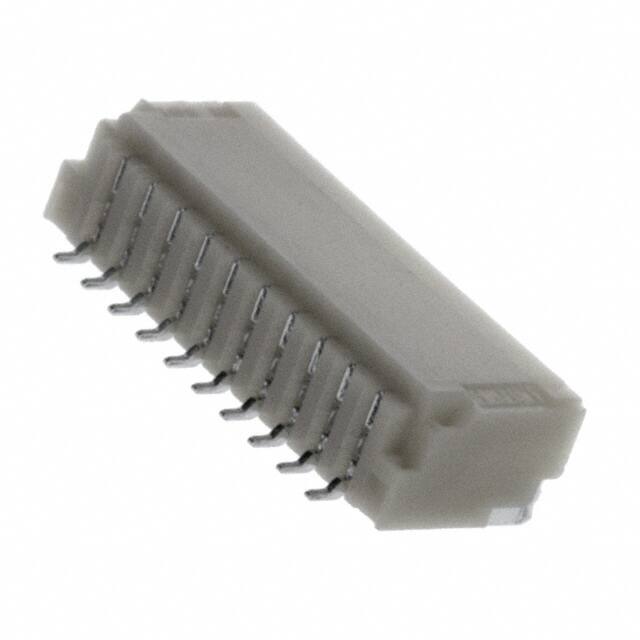

SM10B-SRSS-TB(LF)(SN)

Specifications

Total Number Of Contacts

10

Option

GENERAL PURPOSE

Lead Pitch

1mm

Reach Svhc

No SVHC

Depth

4.95mm

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Terminal

Solder

Contact Type

Male Pin

Filter Feature

NO

Contact Finish Mating

Tin

Max Current Rating

1A

Number Of Positions Loaded

All

Housing Color

Natural

Flammability Rating

UL94 V-0

Voltage Rated Ac

50V

Yükseklik

2.9mm

Kurşunsuz

Lead Free

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

1

Iec Conformance

NO

Max Voltage Rating Ac

50V

Fastening Type

Push-Pull

Housing Material

Nylon

Contact Resistance

20mOhm

Pozisyon Sayısı

10

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

18 Weeks

Shrouding

Shrouded - 4 Wall

Gender

Female

Insulation Height

0.114 2.90mm

Genişlik

4.25mm

Mixed Contacts

NO

Din Conformance

NO

JESD-609 Kodu

e2

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Header
