Volume pricing
- 1+ pcs$0.30
- 10+ pcs$0.28
- 100+ pcs$0.26
- 500+ pcs$0.25
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

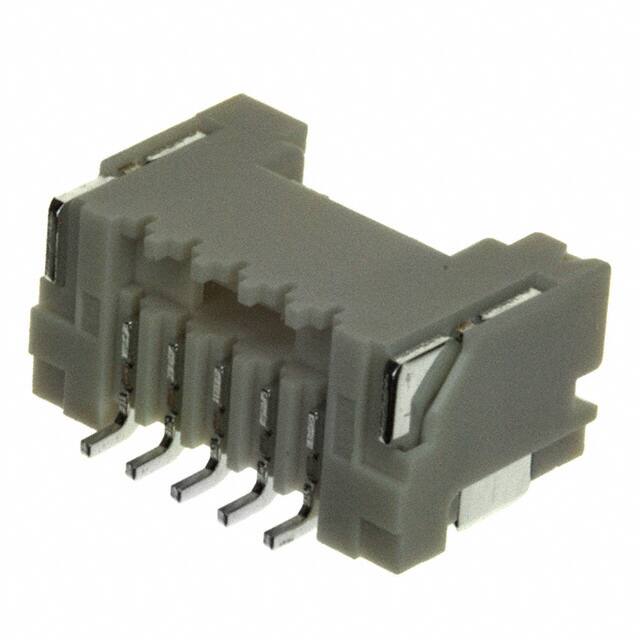

Specifications
- RoHS Durumu
- RoHS Compliant
- Pitch Mating
- 0.059 1.50mm
- Terminal
- Solder
- Parça Durumu
- Active
- Number Of Positions Loaded
- All
- Nominal Gerilim
- 100V
- Total Number Of Contacts
- 5
- Özellikler
- Solder Retention
- Contact Materials
- Copper Alloy
- Ul Flammability Code
- 94V-0
- Mil Conformance
- NO
- Connector Type
- Header
- Current Rating Amps
- 2A
- Contact Shape
- Rectangular
- JESD-609 Kodu
- e3
- Insulation Color
- Natural
- Contact Type
- Outer Shroud Contact
- Iec Conformance
- NO
- Contact Gender
- MALE
- Filter Feature
- NO
- Fabrika Tedarik Süresi
- 16 Weeks
- Additional Feature
- SHROUDED, SIDE ENTRY
- Insulation Height
- 0.228 5.80mm
- Shrouding
- Shrouded - 4 Wall
- Seri
- ZE
- Option
- GENERAL PURPOSE
- Mixed Contacts
- NO
- Insulation Materials
- Polyamide (PA), Nylon
- Style
- Board to Cable/Wire
- Kurşunsuz
- Lead Free
- Ambalaj
- Tape & Reel (TR)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Din Conformance
- NO
- Kurşunsuz Kodu
- yes
- Fastening Type
- Locking Ramp
- Çalışma Sıcaklığı
- -25°C~85°C
- Material Flammability Rating
- UL94 V-0
- Sıra Sayısı
- 1
- Yayın Yılı
- 2007
- Pozisyon Sayısı
- 5
