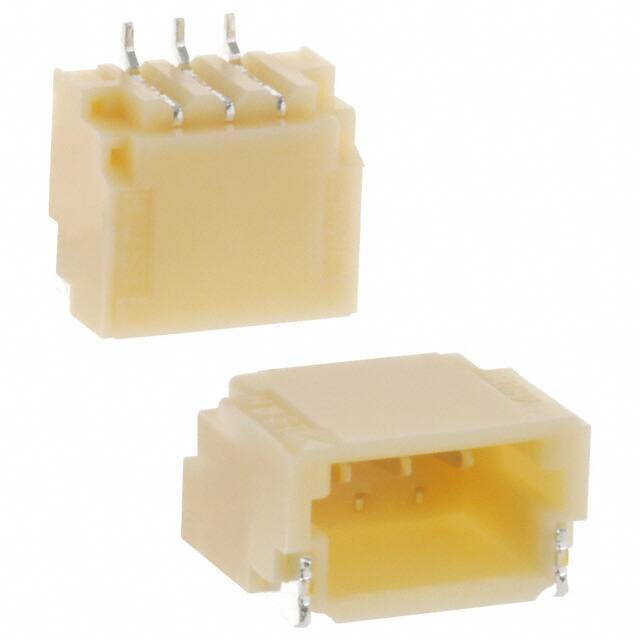

SM03B-SRSS-TB

Specifications

Contact Finish Mating

Tin-Lead

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Yayın Yılı

2002

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

no

Din Conformance

NO

Orientation

Horizontal

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Contains Lead

Style

Board to Cable/Wire

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

SR

Shrouding

Shrouded - 4 Wall

Insulation Materials

Polyamide (PA), Nylon

Insulation Height

0.114 2.90mm

Additional Feature

SIDE ENTRY

Housing Material

Nylon

Contact Plating

Tin

Filter Feature

NO

ECCN Kodu

EAR99

Iec Conformance

NO

Insulation Color

Natural

Contact Type

Male Pin

JESD-609 Kodu

e2

Contact Shape

Square

Current Rating Amps

1A

Connector Type

Header

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Materials

Copper Alloy

Özellikler

Solder Retention

Nominal Gerilim

50V

Number Of Contacts

3

Number Of Positions Loaded

All
