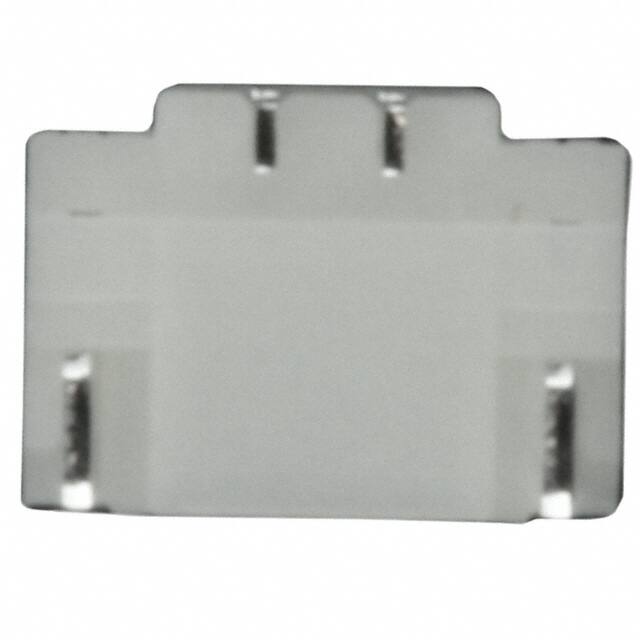

SM02B-SURS-TF(LF)(SN)

Specifications

Özellikler

Solder Retention

Contact Materials

Copper Alloy

Ul Flammability Code

94V-0

Voltage Rated Dc

30V

Insulation Color

Natural

Iec Conformance

NO

Akım Değeri

500mA

Contact Shape

Rectangular

Pitch Mating

0.031 0.80mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-25°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Horizontal

Style

Board to Cable/Wire

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Fabrika Tedarik Süresi

18 Weeks

Reach Svhc

No SVHC

Material

Polyamide

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Connector Type

Header

Mil Conformance

NO

Current Rating Amps

0.2A 0.5A

Lead Pitch

800μm

HTS Kodu

8536.69.40.40

Contact Type

Outer Shroud Contact

Parça Durumu

Active

Working Voltage

30V

Total Number Of Contacts

2

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Terminal Adımı

0.8mm

Din Conformance

NO

Wirecable Gauge

32 AWG

Gender

Male
