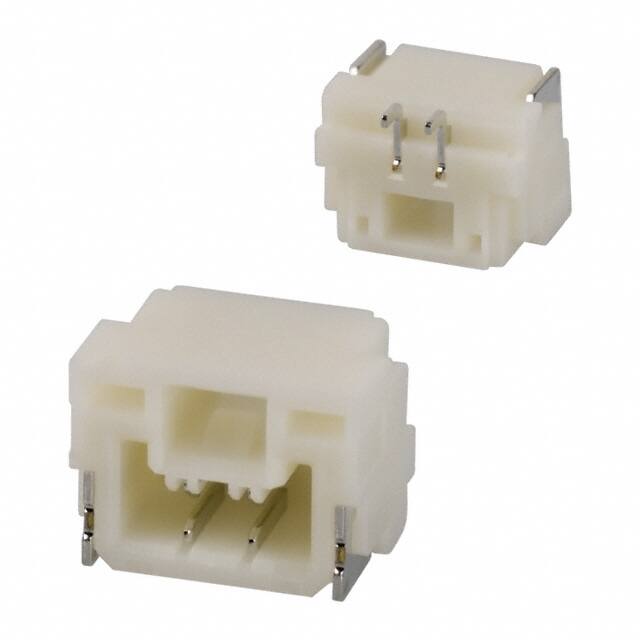

SM02B-GHS-TB(LF)(SN)

Specifications

Filter Feature

NO

Contact Gender

MALE

Additional Feature

SIDE ENTRY, SHROUDED

Housing Material

Nylon

Fabrika Tedarik Süresi

16 Weeks

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

GH

Shrouding

Shrouded - 4 Wall

Insulation Materials

Polyamide (PA9T), Nylon 9T

Insulation Height

0.167 4.25mm

Din Conformance

NO

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Locking Ramp

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Sıra Sayısı

1

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Pozisyon Sayısı

2

Terminal

Solder

Pitch Mating

0.049 1.25mm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Number Of Positions Loaded

All

Housing Color

Natural

Total Number Of Contacts

2

Nominal Gerilim

50V

Connector Type

Header

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention
