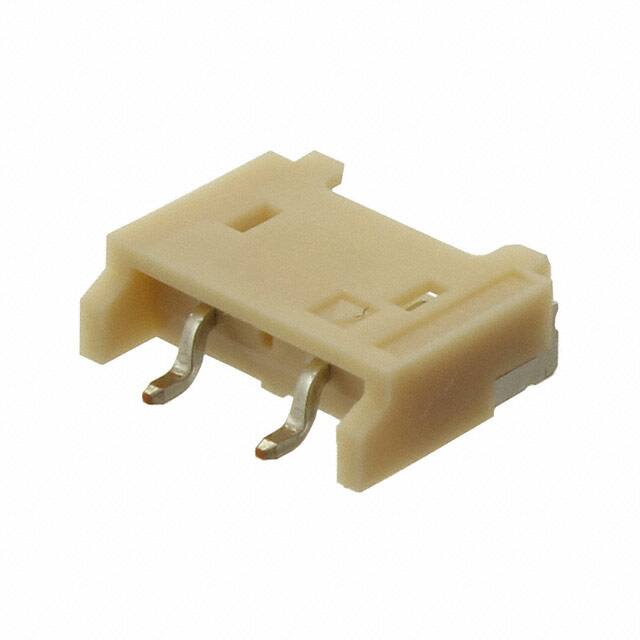

SM02(4.0)B-BHS-1-TB(LF)(SN)

Specifications

Terminal Adımı

4mm

Fastening Type

Detent Lock

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Contact Resistance

20mOhm

Kurşunsuz

Lead Free

Din Conformance

NO

Pozisyon Sayısı

2

Contact Finish Mating

Tin

Sıra Sayısı

1

Filter Feature

NO

Insulation Height

0.126 3.20mm

Seri

BH

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Mil Conformance

NO

Contact Type

Male Pin

Parça Durumu

Active

Nominal Gerilim

600V

Housing Color

Beige

Total Number Of Contacts

2

Number Of Positions Loaded

All

Max Voltage Rating Ac

600V

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Montaj

Surface Mount

Uzunluk

10mm

Montaj Tipi

Surface Mount, Right Angle

Contact Plating

Copper, Tin

Fabrika Tedarik Süresi

16 Weeks

Housing Material

Polyamide

Max Current Rating

1A

Option

GENERAL PURPOSE

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Özellikler

Solder Retention

Contact Materials

Copper Alloy
