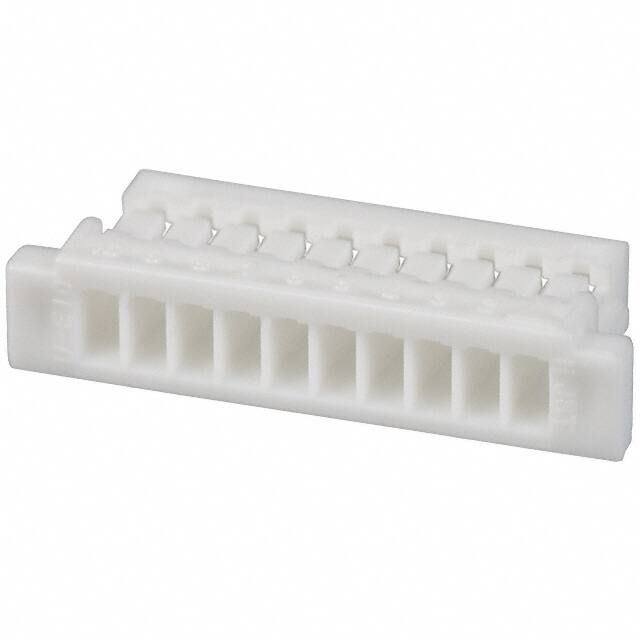

SHR-10V-S-B

Specifications

Voltage Rated Ac

50V

ECCN Kodu

EAR99

Seri

SH

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

10

Mil Conformance

NO

Wire Gauge Max

32 AWG

Note

Contacts Not Included

Montaj

Free Hanging

Ul Flammability Code

94V-0

Filter Feature

NO

Option

GENERAL PURPOSE

Max Current Rating

1A

Flammability Rating

UL94 V-0

Min. Çalışma Sıcaklığı

-25°C

HTS Kodu

8536.69.40.40

Din Conformance

NO

Contact Finish Mating

NOT SPECIFIED

Fabrika Tedarik Süresi

16 Weeks

Iec Conformance

NO

Mixed Contacts

NO

Reach Svhc

No SVHC

Body Material

PBT

Max Voltage Rating Ac

50V

Kurşunsuz

Lead Free

Uzunluk

13mm

Ambalaj

Bulk

Contact Type

Female Socket

Contact Termination

Crimp

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

5mm

Total Number Of Contacts

10

Kurşunsuz Kodu

yes

Lead Pitch

1mm

Insulation Resistance

100MOhm

Pitch

0.039 1.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

28.349523g

Yayın Yılı

2004
