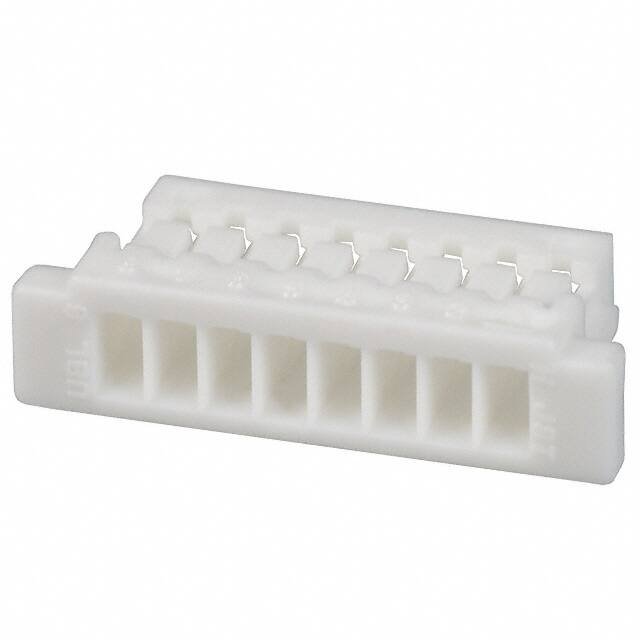

SHR-08V-S-B

Specifications

Insulation Resistance

100MOhm

Pitch

0.039 1.00mm

Total Number Of Contacts

8

Mil Conformance

NO

Kurşunsuz Kodu

yes

Lead Pitch

1mm

Note

Contacts Not Included

Montaj

Free Hanging

Weight

28.349523g

Yayın Yılı

2002

Material

PBT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

20mOhm

ECCN Kodu

EAR99

Contact Termination

Crimp

Contact Type

Female Socket

Seri

SH

Voltage Rated Ac

50V

Ambalaj

Bulk

Uzunluk

11mm

Montaj Tipi

Free Hanging (In-Line)

Depth

5mm

Pozisyon Sayısı

8

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts

NO

Contact Finish Mating

NOT SPECIFIED

Iec Conformance

NO

Parça Durumu

Active

Fabrika Tedarik Süresi

16 Weeks

Kurşunsuz

Lead Free

Sıra Sayısı

1

Renk

Natural

Reach Svhc

No SVHC

Orientation

Straight

Connector Type

Receptacle

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Yükseklik

6.35mm
