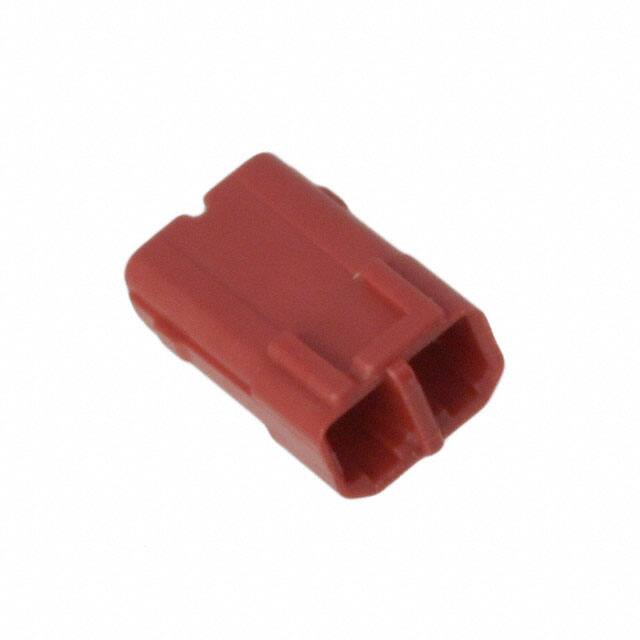

SFHR-02V-R

Specifications

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

350V

Min. Çalışma Sıcaklığı

-25°C

Renk

Red

Maks. Çalışma Sıcaklığı

85°C

Contact Finish Mating

NOT SPECIFIED

Contact Materials

NOT SPECIFIED

Sıra Sayısı

1

Kurşunsuz

Lead Free

Orientation

Straight

Connector Type

Receptacle

Din Conformance

NO

Fabrika Tedarik Süresi

16 Weeks

Parça Durumu

Active

Mixed Contacts

NO

Ambalaj

Bulk

Option

GENERAL PURPOSE

Contact Termination

Crimp

Wire Gauge Max

30 AWG

Housing Material

Thermoplastic

RoHS Durumu

RoHS Compliant

Seri

SFH

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

6.3mm

Wire Gauge Min

22 AWG

Contact Type

Female Socket

Pozisyon Sayısı

2

Max Current Rating

4A

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Note

Contacts Not Included

Reach Svhc

Unknown

Total Number Of Contacts

2

Montaj

Free Hanging

Pitch

0.071 1.80mm

Iec Conformance

NO

Filter Feature

NO

Additional Feature

LOW PROFILE
